Запчасти Case 580N EP (35.106.AO[01]) - OIL PUMP & LINES, FITTING (35) - HYDRAULIC SYSTEMS

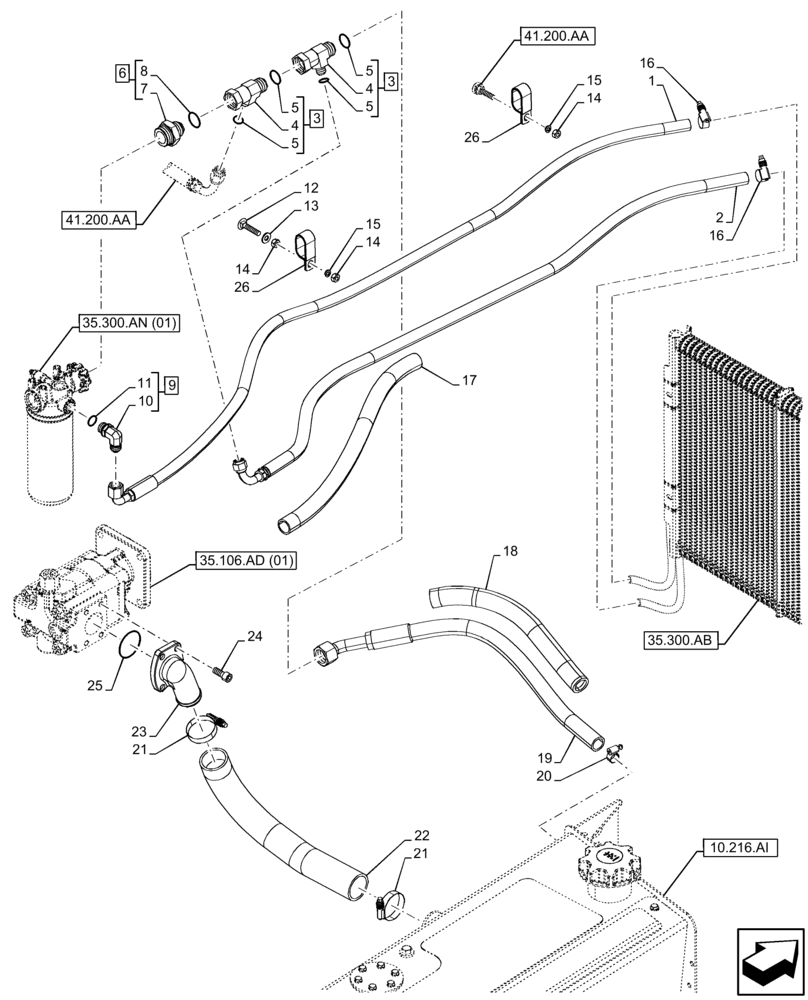

Схема запчастей Case 580N EP - (35.106.AO[01]) - OIL PUMP & LINES, FITTING (35) - HYDRAULIC SYSTEMS
6
5
35.106.ad (01)
22
25
14
21
19
35.300.an (01)
11
12
9
3
16
5
10
2
35.300.ab
8
26
5
23
41.200.aa
18
21
17
41.200.aa
3
14
24
15
10.216.ai
4
14
13
15
16
20
1
7
5
4
26

Артикул

Название

Примечание

Количество

1

47603859

HYDRAULIC HOSE,16mm ID x 1834mm L

Cooler Supply

1шт.

2

47603866

HYDRAULIC HOSE,16mm ID x 1560mm

Cooler Out to Filter

1шт.

3

86625274

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx7/8"-14 Br

ASSY, Incl 4 (Qty 1), 5 (Qty 2)

2шт.

4

NSS

NOT SOLD SEPARAT

Tee, Incl in 3

2шт.

5

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

4шт.

6

86504080

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ASSY, Incl 7, 8

1шт.

7

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

8

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

9

164910

90 ELBOW,7/8" - 14 JIC x 7/8" - 14 ORB

ASSY, Incl 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 9

1шт.

11

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

86512426

CARRIAGE BOLT,Sq Nk, M10 x 50mm, Cl 8.8

1шт.

13

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

14

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

15

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

16

328186A1

HOSE CLAMP,400mm L

2шт.

17

84329867

HOSE PROTECTION,26.87mm ID x 590mm L

1шт.

18

47603901

HOSE PROTECTION,34mm ID x 39.5mm OD x 400mm

1шт.

19

47603890

HYDRAULIC HOSE,25mm ID x 705mm

Filter to Tank

1шт.

20

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

21

259044A1

CLAMP

2шт.

22

87627903

HYDRAULIC HOSE,50.80 mm ID x mm, SAE 30R7

Suction Mechanical

1шт.

23

87592658

FLANGE

1шт.

24

864-12030

HEX SOC SCREW,M12 x 30mm, Cl 8.8

3шт.

25

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

26

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

2шт.

Выбрано товаров: 26
