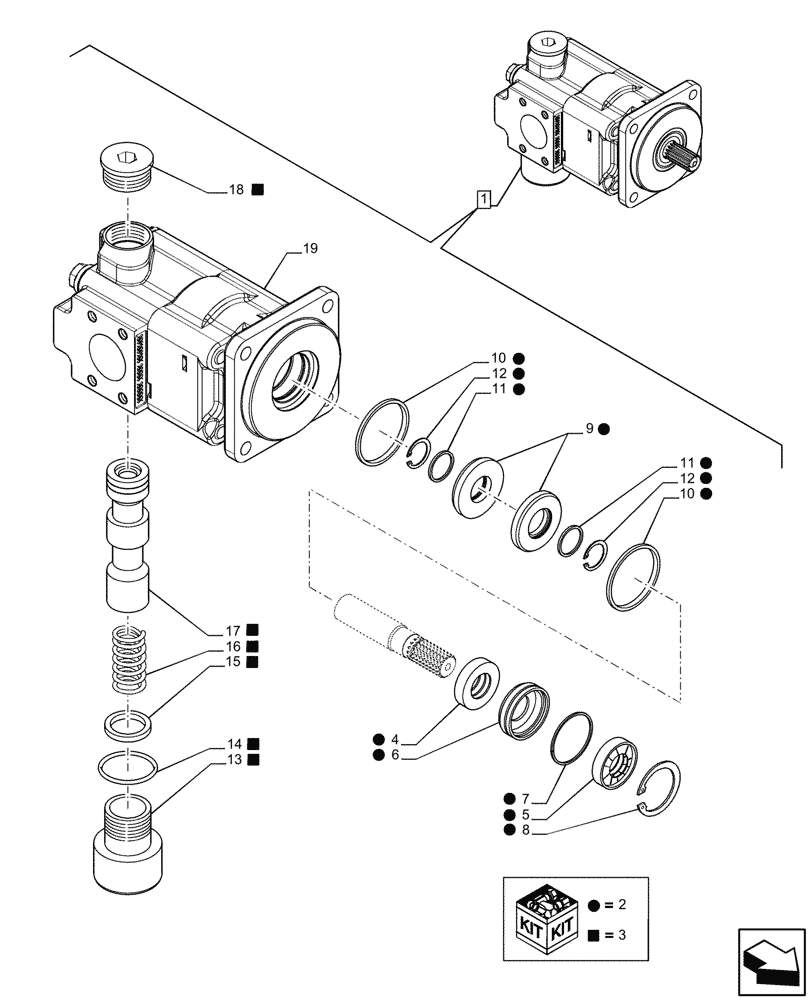

Запчасти Case 580N EP (35.106.AD[02]) - HYDRAULIC PUMP, COMPONENTS (35) - HYDRAULIC SYSTEMS

1

87434672

HYDRAULIC PUMP,52.4 CC

Single 52.4 CC/REV, ASSY, Incl 2 - 19

1шт.

1

87434672R

REMAN-HYD PUMP

Single 52.4 CC/REV

1шт.

1

87434672C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

87434070

HYD PUMP REPAIR KIT

Incl 4 - 12

1шт.

3

87438045

HYD PUMP REPAIR KIT

Incl 13 - 18

1шт.

4

L32418

SEAL,26.99mm ID x 42.93mm OD x 7.92mm Thk

1шт.

5

87434075

SEAL

1шт.

6

87434076

SEAL RETAINER

1шт.

7

87434077

O-RING

1шт.

8

102-23206

SNAP RING,#206, 2.190", Int, Spiral

1шт.

9

N13582

THRUST PLATE

2шт.

10

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

2шт.

11

144173A1

SEAL

2шт.

12

NSS

NOT SOLD SEPARAT

Ring, Incl in 2

2шт.

13

87437899

PLUG

1шт.

14

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

15

87437905

SPRING-CHECK

1шт.

16

87437906

SPRING-CHECK

1шт.

17

87437914

SPOOL

1шт.

18

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

1шт.

19

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.
