(25.400.AM[02]) - FRONT AXLE, BODY, 2WD

Запчасти Case 580N EP (25.400.AM[02]) - FRONT AXLE, BODY, 2WD (25) - FRONT AXLE SYSTEM

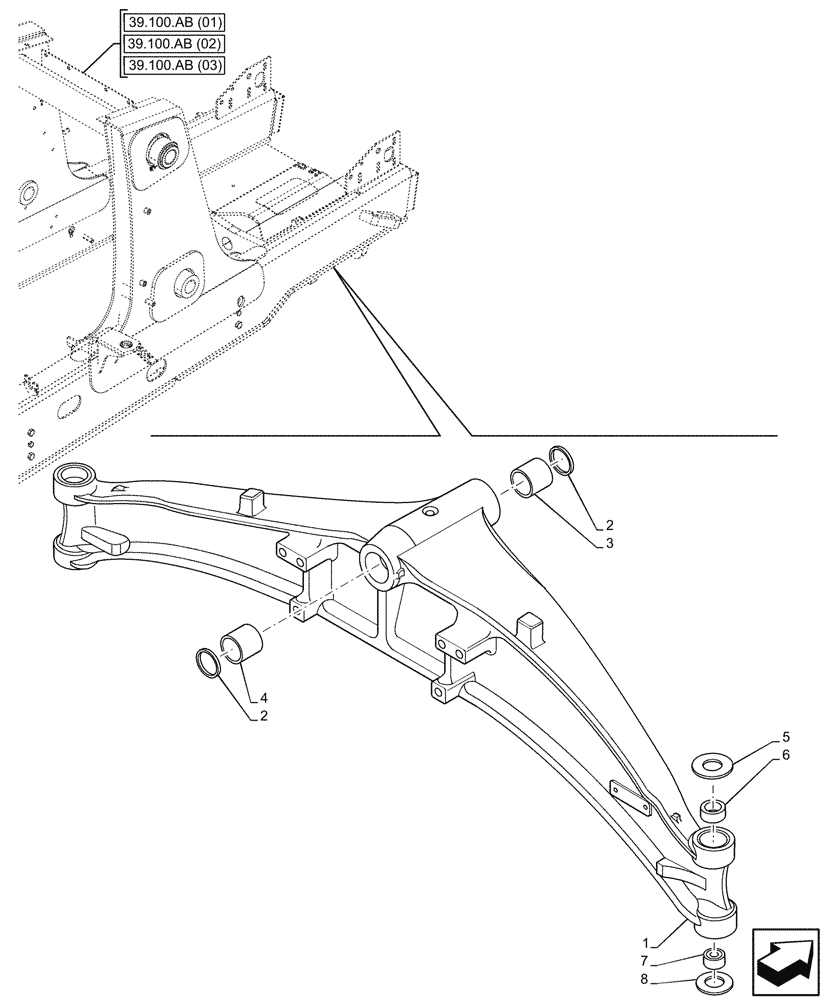

Схема запчастей Case 580N EP - (25.400.AM[02]) - FRONT AXLE, BODY, 2WD (25) - FRONT AXLE SYSTEM
39.100.ab (02)
6
5
2
7
2
4
8
1
3
39.100.ab (03)
39.100.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

429230A1

AXLE HOUSING

1шт.

2

N14367

SEALING RING,50mm ID x 60.1mm OD x 4mm Thk

2шт.

3

D149726

BUSHING,6.20mm ID x 9.60mm OD x 6mm L

1шт.

4

D149725

BUSHING,59.75 OD x 54mm L

1шт.

5

122270A1

BELLEVILLE WASHER,36mm ID x 71mm OD x 2mm Th

2шт.

6

87400286

BUSHING

2шт.

7

N14373

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

2шт.

8

122261A1

BELLEVILLE WASHER,47.5mm ID x 70mm OD x 2mm Th

2шт.

Выбрано товаров: 8
