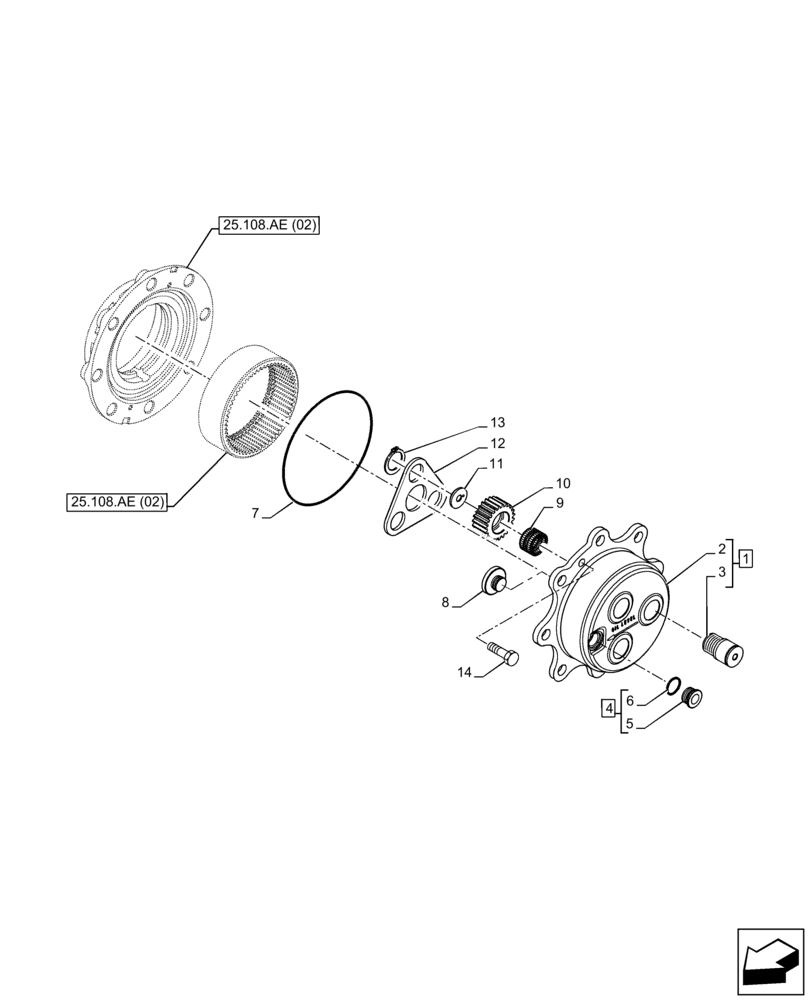

Запчасти Case 580N EP (25.310.AB) - FRONT AXLE, PLANETARY REDUCER, CARRIER, 4WD (25) - FRONT AXLE SYSTEM

1

47436748

KIT

ASSY, Incl 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Carrier, Planetary, Incl in 1

1шт.

3

47435815

PIN,36.3mm OD x 65.3mm L

Planetary Drive

3шт.

4

84272055

PLUG,M30 x 2

ASSY, Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl in 4

1шт.

6

9626929

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

7

14468780

O-RING,0.139" Thk x 8.73" ID, -269, Cl 5, 75 Duro

1шт.

8

84469423

BUTTON

1шт.

9

47435841

NEEDLE ROLLER,4mm OD x 29.8mm L

4 x 29.8

93шт.

10

47435814

PLANETARY GEAR,23T

PS1121

3шт.

11

47435813

THRUST WASHER,35.9mm ID x 58mm OD x 1.5mm Thk

Planetary

3шт.

12

47435816

WASHER,triangular 50mm ID x 1.5mm thk

Planetary

1шт.

13

370004

SNAP RING,M35 x 1.5mm Thk, External

3шт.

14

47361879

SCREW,M8 x 20 Full 8.8 PHC

4шт.
