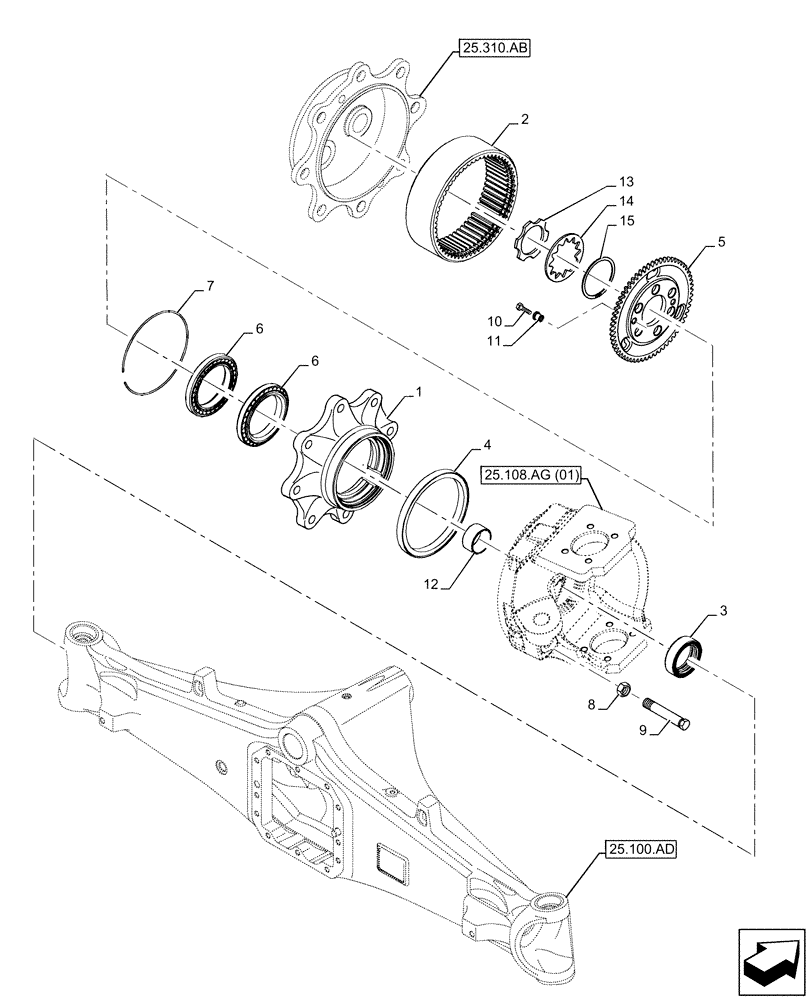

Запчасти Case 580N EP (25.108.AE[01]) - FRONT AXLE, STEERING KNUCKLE, 4WD (25) - FRONT AXLE SYSTEM

1

47491944

HUB

PS 1121, Machining

1шт.

2

47438349

RING GEAR,60 teeth

1шт.

3

84166622

SEAL,43.1mm ID x 60mm OD x 17.2mm Thk

1шт.

4

47123727

SEAL,130mm ID x 160mm OD x 16mm Thk

1шт.

5

84469354

SUPPORT

Ring Gear, PS Axle

1шт.

6

47539809

TAPERED BEARING,95mm ID x 135mm OD x 20mm L

TM JL819349 / JL

2шт.

7

5165162

SNAP RING,M50, Int

1шт.

8

47361877

NUT,Hex, Thin, M18 x 2.5, Cl. 5

M18

1шт.

9

87751873

SCREW,M18 x 105mm, Cl 10.9

Limitation Steering

1шт.

10

84404452

BOLT,Hex, M10 x 40, Full, Cl. 8.8

6шт.

11

84270060

SLEEVE,10.55mm ID x 16.069mm OD x 23mm L

T-Dowel 10.55 x 16.069 x 23

6шт.

12

84469400

BRONZE BUSHING,45mm ID x 50mm OD x 30mm L

45 x 50 x 30

1шт.

13

47703830

SNAP RING,M39, Int

Circlip

2шт.

14

84469371

THRUST WASHER,33.08mm ID x 51.25mm OD x 2.5mm thk

Internal

2шт.

15

84469386

THRUST WASHER,45mm ID x 64mm OD x 2.5mm thk

Internal

2шт.
