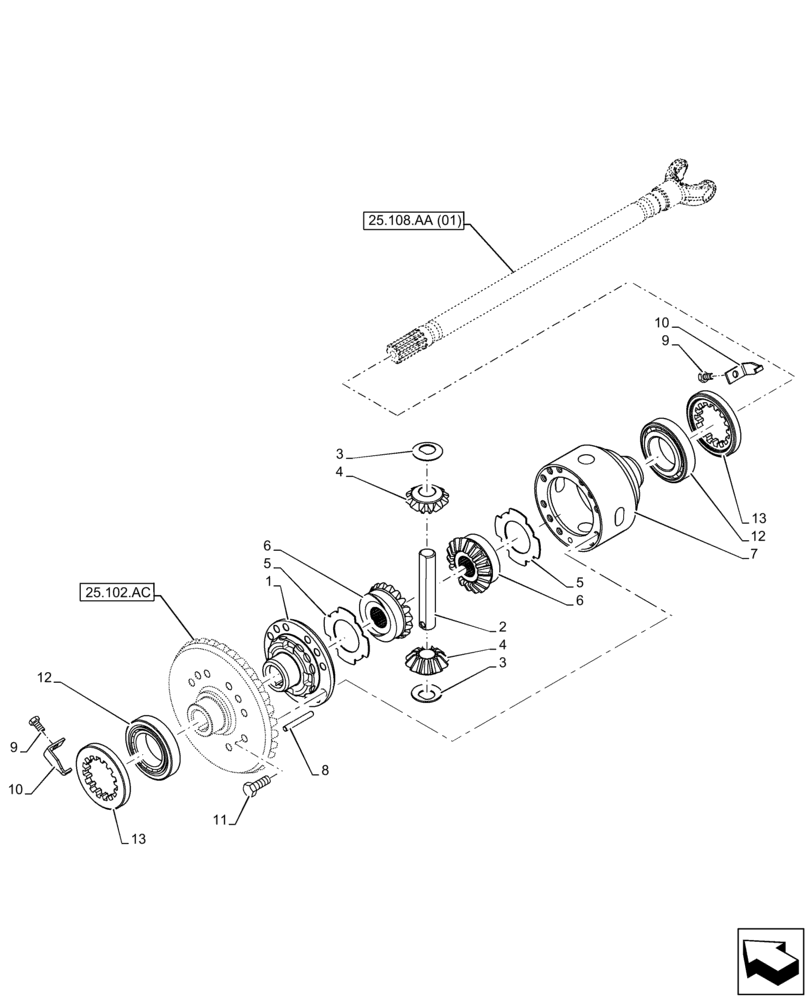

Запчасти Case 580N EP (25.102.AD) - FRONT AXLE, DIFFERENTIAL GEAR, 4WD (25) - FRONT AXLE SYSTEM

1

84540882

HOUSING

Differential RH

1шт.

2

84268545

PIN,21.9mm OD x 122.9mm L

Differential Cross

1шт.

3

87727553

THRUST WASHER,20.27mm ID x 41.75mm OD x 1.5mm Thk

Pinion

2шт.

4

47431450

PINION,12T

Bevel

2шт.

5

84529087

CLUTCH DISC,49.1mm ID x 85mm OD x 1.5mm Thk

Separator

2шт.

6

47431451

GEAR,18T

Bevel

2шт.

7

84540883

HOUSING

1шт.

8

84268547

PIN,6.99mm OD x 61.5mm L

Dowel

1шт.

9

87015743

BOLT,Hex, M8 x 16mm, Cl 10.9

2шт.

10

87748532

RETAINER

2шт.

11

47582654

BOLT,Hex, M10 x 75mm, Cl 12.9

12шт.

12

561201

TAPERED BEARING,50mm ID x 90mm OD x 21.75mm W

2шт.

13

4966240

BEARING LOCK NUT,M95 x 2, 15T

2шт.
