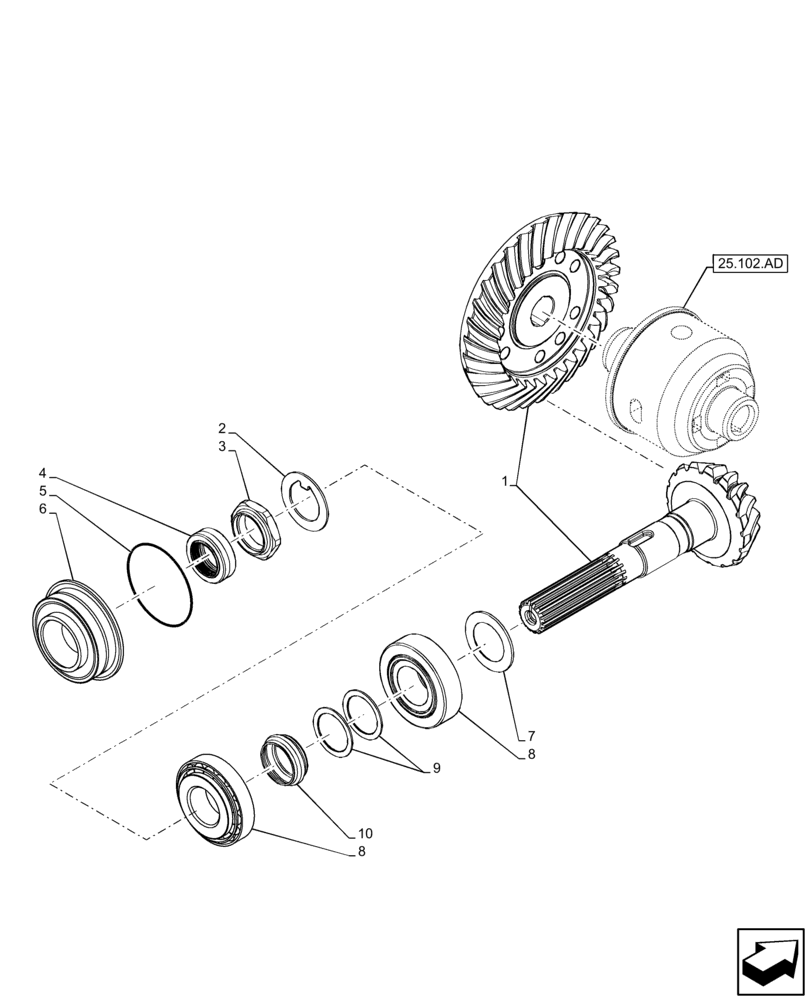

Запчасти Case 580N EP (25.102.AC) - FRONT AXLE, BEVEL GEAR, 4WD (25) - FRONT AXLE SYSTEM

1

47516373

GEAR

Bevel ASSY

1шт.

2

84366909

LOCK WASHER,40.85mm ID x 61.75mm OD x 2mm Thk

1шт.

3

84274691

NUT,M40 x 1.5

1шт.

4

84258508

SEAL,35mm ID x 52mm OD x 18.2mm Thk

Oil 35 x 52 x 18.2

1шт.

5

638-54825

O-RING,3.55mm Thk x 82.5mm ID, Cl 5, 75 Duro

1шт.

6

84318880

HOUSING

Seal Bevel Pinion

1шт.

7

84299343

WASHER,41.5mm ID x 63mm OD x 2.5mm Thk

1шт.

8

84557103

TAPERED BEARING,40mm ID x 90mm OD x 25.25mm W

2шт.

9

84528635

WASHER,40.5mm ID x 52mm OD x 4.8mm Thk

2шт.

10

84299341

SLEEVE,42.15mm ID x 50.5mm OD x 18.5mm L

1шт.
