(21.112.AF) - VAR - 423058, 423059 - TRANSMISSION, POWERSHUTTLE, DIPSTICK

Запчасти Case 580N EP (21.112.AF) - VAR - 423058, 423059 - TRANSMISSION, POWERSHUTTLE, DIPSTICK (21) - TRANSMISSION

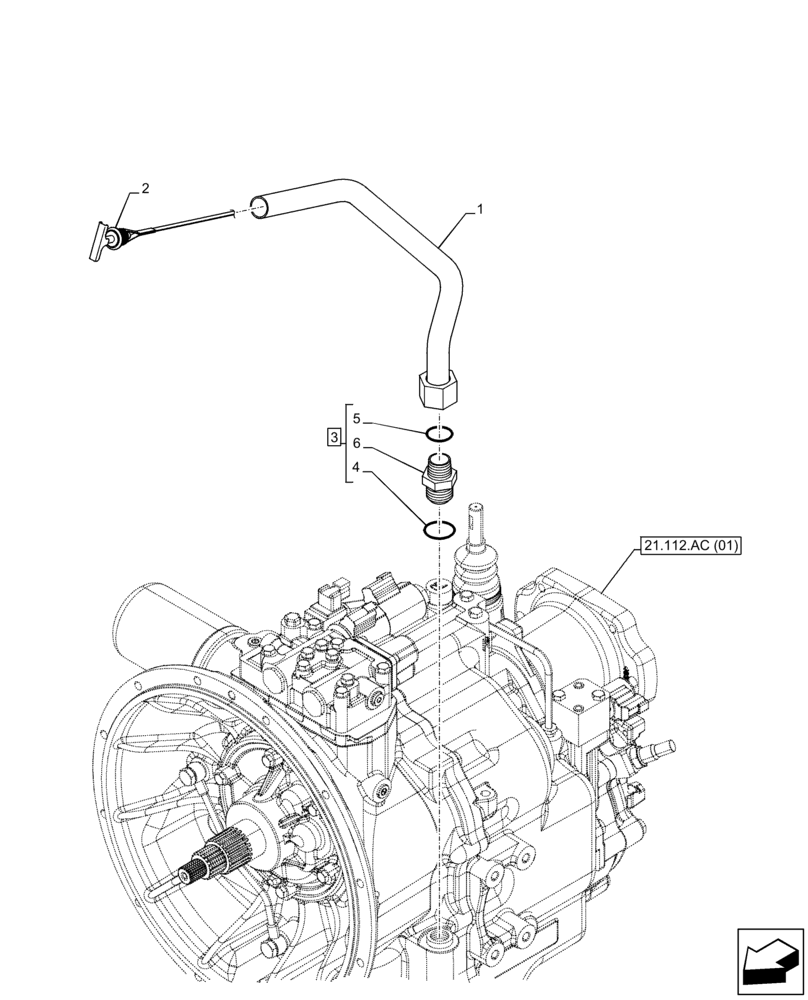

Схема запчастей Case 580N EP - (21.112.AF) - VAR - 423058, 423059 - TRANSMISSION, POWERSHUTTLE, DIPSTICK (21) - TRANSMISSION
2
4
1
3
21.112.ac (01)
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84329366

TUBE

Dipstick Powershuttle Transmission

1шт.

2

87601345

DIPSTICK,824mm L

Transmission

1шт.

3

218-459

HYD CONNECTOR,1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ASSY, Incl 4 - 6

1шт.

4

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.
