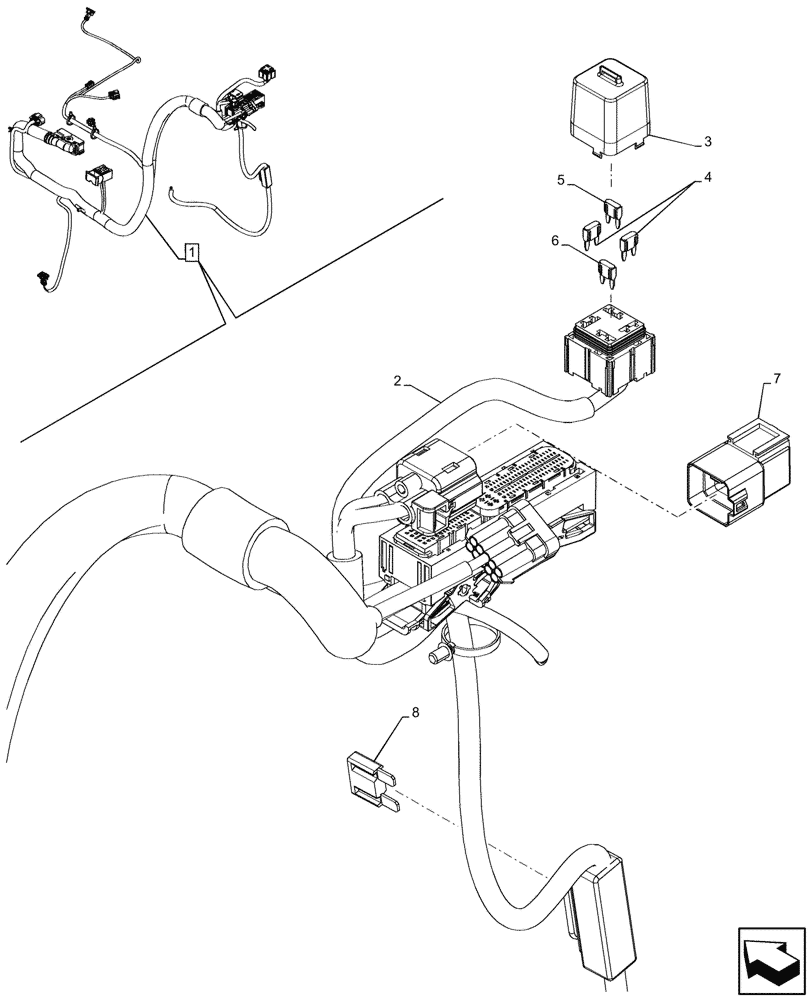

Запчасти Case 580N EP (55.100.030) - ENGINE, HARNESS, FUSE BOX, RELAY (55) - ELECTRICAL SYSTEMS

1

47714162

WIRE HARNESS

Engine, ASSY, Incl 2 - 8, Years: -01-JAN-17

1шт.

See also Wire Harness Components in Figure 55.015.040

1шт.

1

47714202

WIRE HARNESS

Engine, ASSY, Incl 2 - 8, Years: 02-JAN-17-28-MAR-17

1шт.

See also Wire Harness Components in Figure 55.015.040

1шт.

1

48037995

WIRE HARNESS

Engine, ASSY, Incl 2 - 8, Start Year: 29-MAR-17

1шт.

See also Wire Harness Components in Figure 55.015.040

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

84386691

COVER

1шт.

4

121411A1

FUSE,7.5A, Mini, Brown

2шт.

5

121414A1

FUSE,20A, Mini, Yellow

1шт.

6

121413A1

FUSE,15A, Mini, Blue

1шт.

7

84271717

RELAY,12V, 50A

Sealed

1шт.

8

84253577

FUSE,60A, Maxi, Blue

1шт.
