(55.100.010) - STARTER MOTOR, ALTERNATOR, GROUND CABLE

Запчасти Case 580N EP (55.100.010) - STARTER MOTOR, ALTERNATOR, GROUND CABLE (55) - ELECTRICAL SYSTEMS

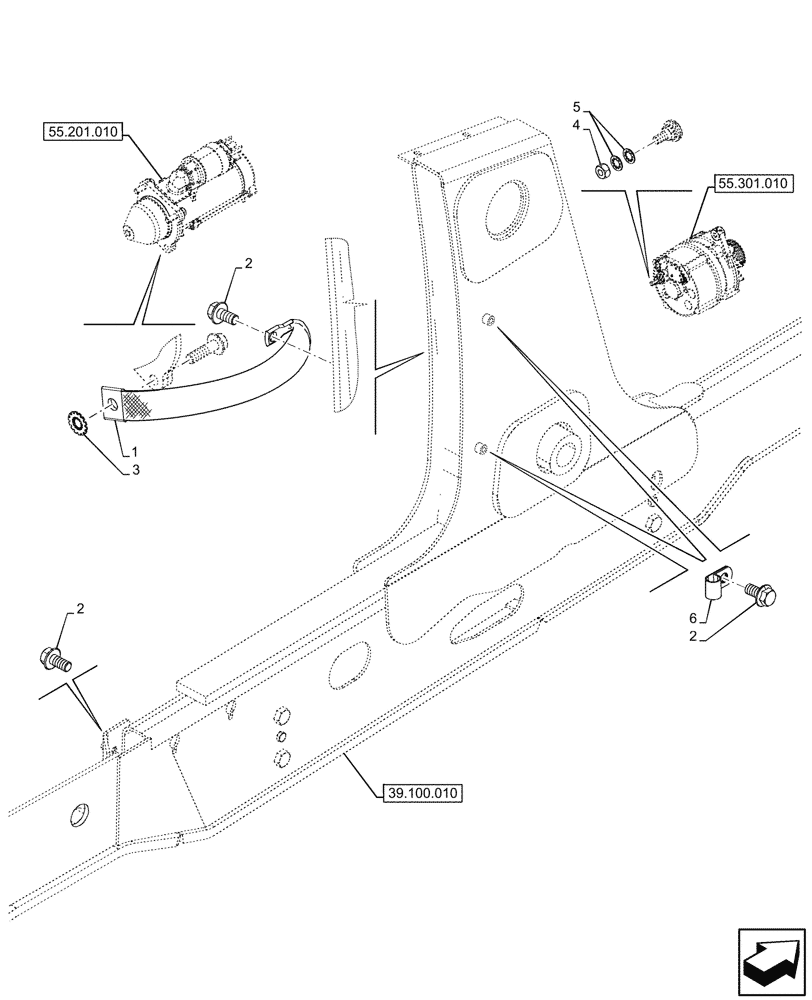

Схема запчастей Case 580N EP - (55.100.010) - STARTER MOTOR, ALTERNATOR, GROUND CABLE (55) - ELECTRICAL SYSTEMS
55.301.010
4
5
1
2
2
6
2
3
55.201.010
39.100.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87407206

GROUND STRAP

Starter Motor

1шт.

2

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.

3

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

5

493-21033

LOCK WASHER,Int Tooth, 5/16"

2шт.

6

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.
