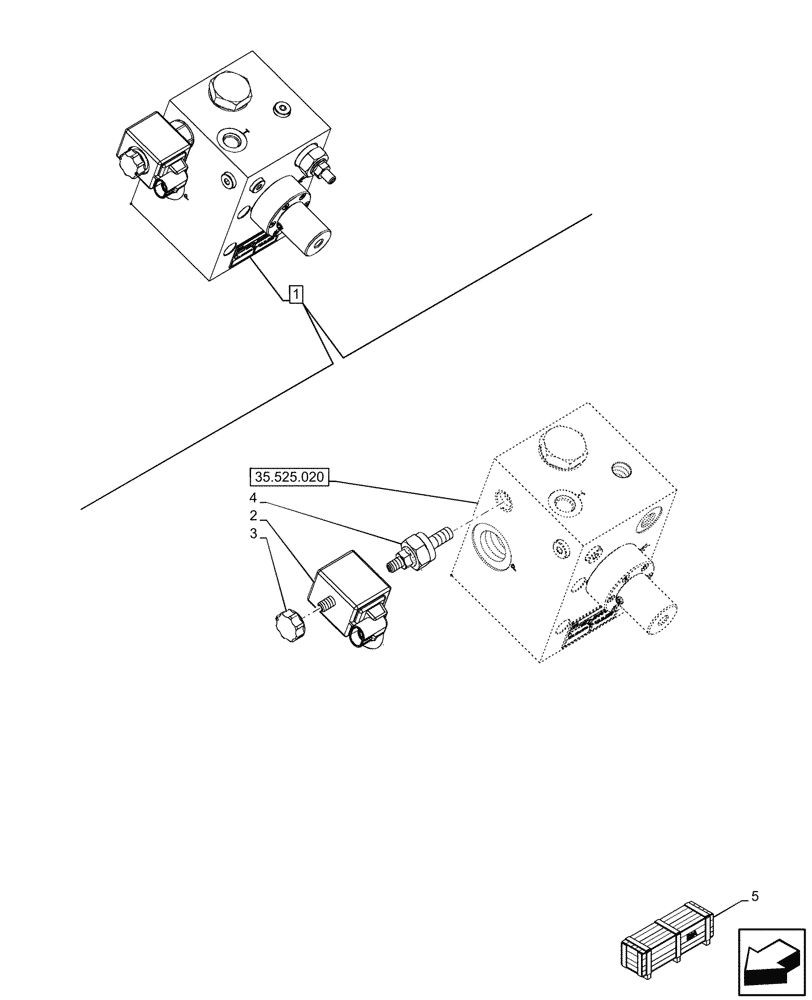

Запчасти Case 580N EP (55.036.040) - VAR - 423083, 747661 - AUXILIARY CONTROL VALVE, SOLENOID (55) - ELECTRICAL SYSTEMS

1

84247109

VALVE

ASSY, Open Center Uni-Aux, Incl 2 - 4

1шт.

See also Valve Components in Figure 35.525.020

1шт.

2

84478803

COIL

Solenoid with Connector Diode

1шт.

3

9970384

RING NUT

1шт.

4

47491458

SOLENOID VALVE

1шт.

5

47674139

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 4

1шт.

Valid for 580N EP (Livery) Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47674141

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Incl 1 - 4

1шт.

Valid for 580N EP (Livery) Model Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47674176

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 4

1шт.

Valid for 580N EP (Livery) Model Only, W/ Mechanical Control and Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

5

47674177

CONSTRUCTION DIA

Uni-Directional, Incl 1 - 4

1шт.

Valid for 580N EP (Livery) Model Only, W/ Mechanical Control and Extendable Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
