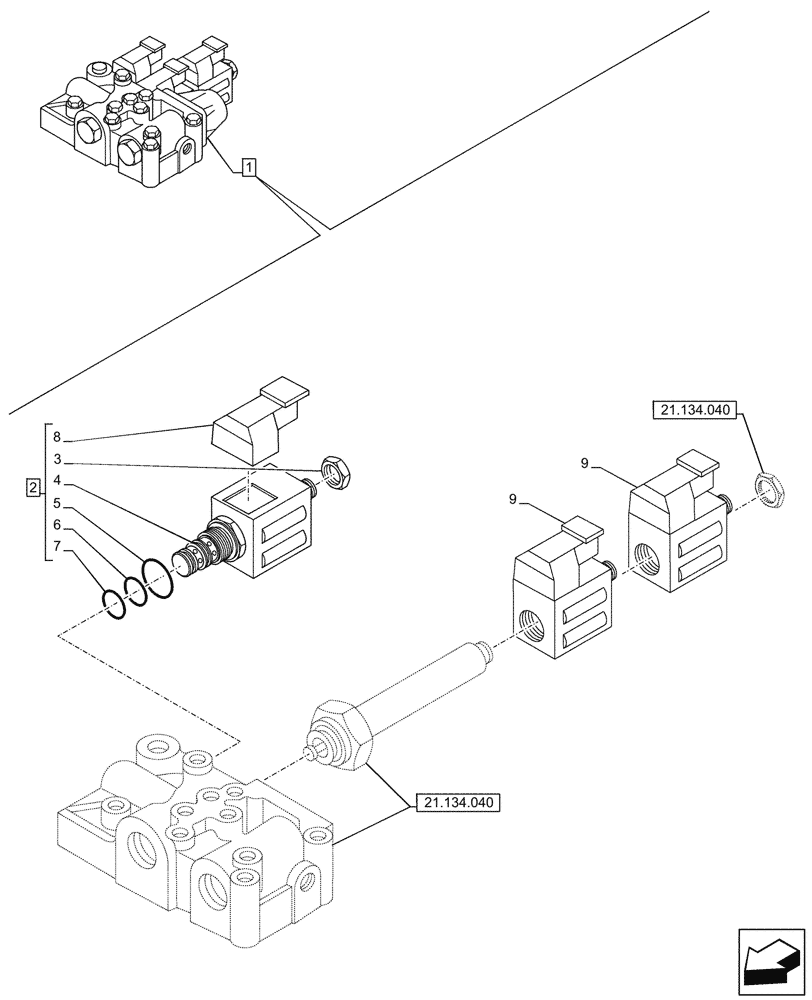

Запчасти Case 580N EP (55.024.030) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, CONTROL VALVE, COMPONENTS, SOLENOID (55) - ELECTRICAL SYSTEMS

1

87524409

CONTROL VALVE

ASSY, Transmission, Incl 2 - 9

1шт.

See also Control Valve Components in Figure 21.134.040

1шт.

2

349295A1

SOLENOID VALVE

ASSY, 2GPM, Incl 3 - 8

1шт.

3

349292A1

JAM NUT,Hex, 1/2" - 2, RH Thd

1шт.

4

349291A1

CARTRIDGE

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

7

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

8

298614A1

SOLENOID

1шт.

9

87456900

SERVICE KIT

Solenoid with Jumper (Used for Fwd/Rev)

1шт.
