(50.200.020) - VAR - 747853, 747855 - AIR CONDITIONING, CONDENSER

Запчасти Case 580N EP (50.200.020) - VAR - 747853, 747855 - AIR CONDITIONING, CONDENSER (50) - CAB CLIMATE CONTROL

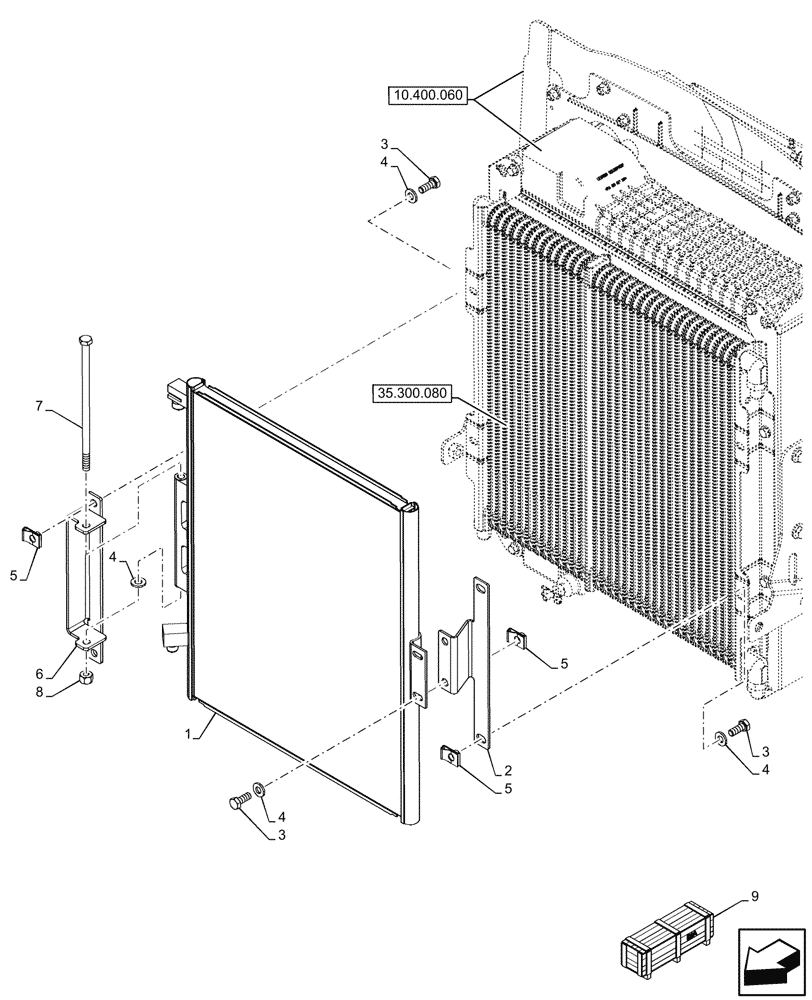

Схема запчастей Case 580N EP - (50.200.020) - VAR - 747853, 747855 - AIR CONDITIONING, CONDENSER (50) - CAB CLIMATE CONTROL
35.300.080
5
1
3
4
2
8
4
3
4
3
4
7
5
9
5
6
10.400.060
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87546291

CONDENSER

Air Conditioning

1шт.

2

47369248

BRACKET

Black, LH, Condenser Support

1шт.

3

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

4

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

8шт.

5

833-40408

NUT,M8, U

6шт.

6

47369246

BRACKET

Black, Condenser Pivot

1шт.

7

814-10220

BOLT,Hex, M10 x 1.5 x 220mm, Cl 8.8

1шт.

8

412141

NUT,M10 x 1.5, Cl 8

1шт.

9

47714516

CONSTRUCTION DIA

Supplemental High Temperature Ambient, Incl 2, 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
