(90.151.040) - VAR - 747735 - SEAT BELT, SEAT NON-SUSPENSION, 3 INCH

Запчасти Case 580N EP (90.151.040) - VAR - 747735 - SEAT BELT, SEAT NON-SUSPENSION, 3 INCH (90) - PLATFORM, CAB, BODYWORK AND DECALS

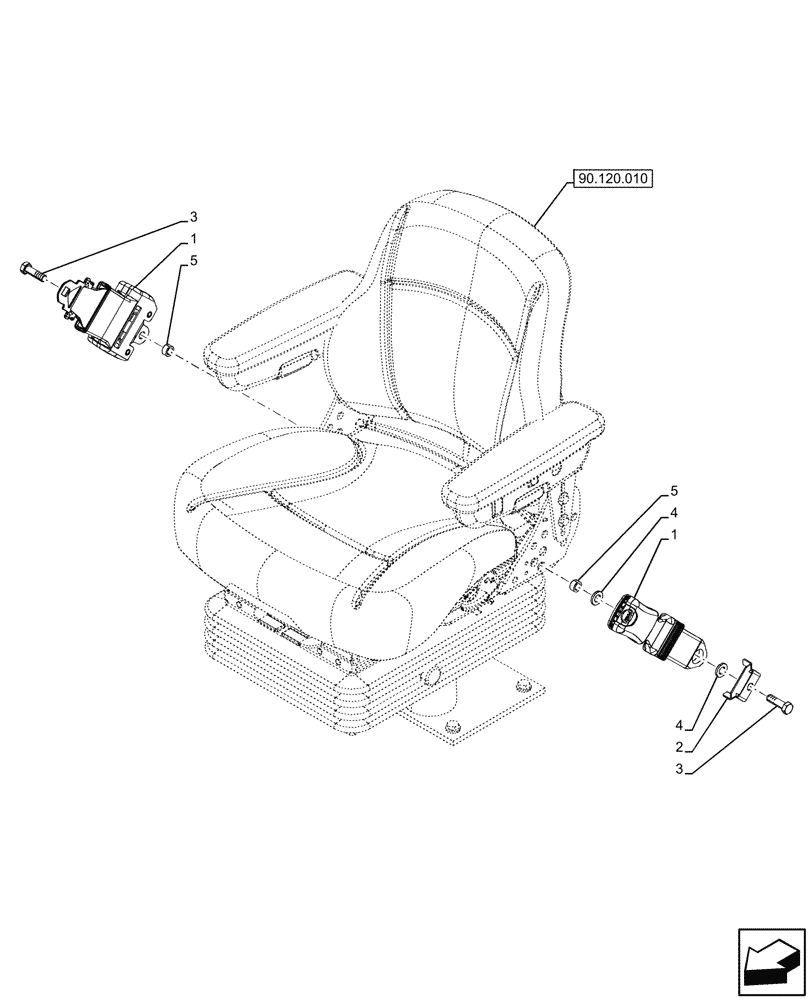

Схема запчастей Case 580N EP - (90.151.040) - VAR - 747735 - SEAT BELT, SEAT NON-SUSPENSION, 3 INCH (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.120.010
4
5
4
3
3
1
1
2
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47600153

SEAT BELT,3 inch Wide Belt

1шт.

2

87310149

BRACKET

Seat Belt

1шт.

3

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

2шт.

4

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

2шт.

5

87311572

SPACER,12.7mm x 19mm x 9mm

2шт.

Выбрано товаров: 5
