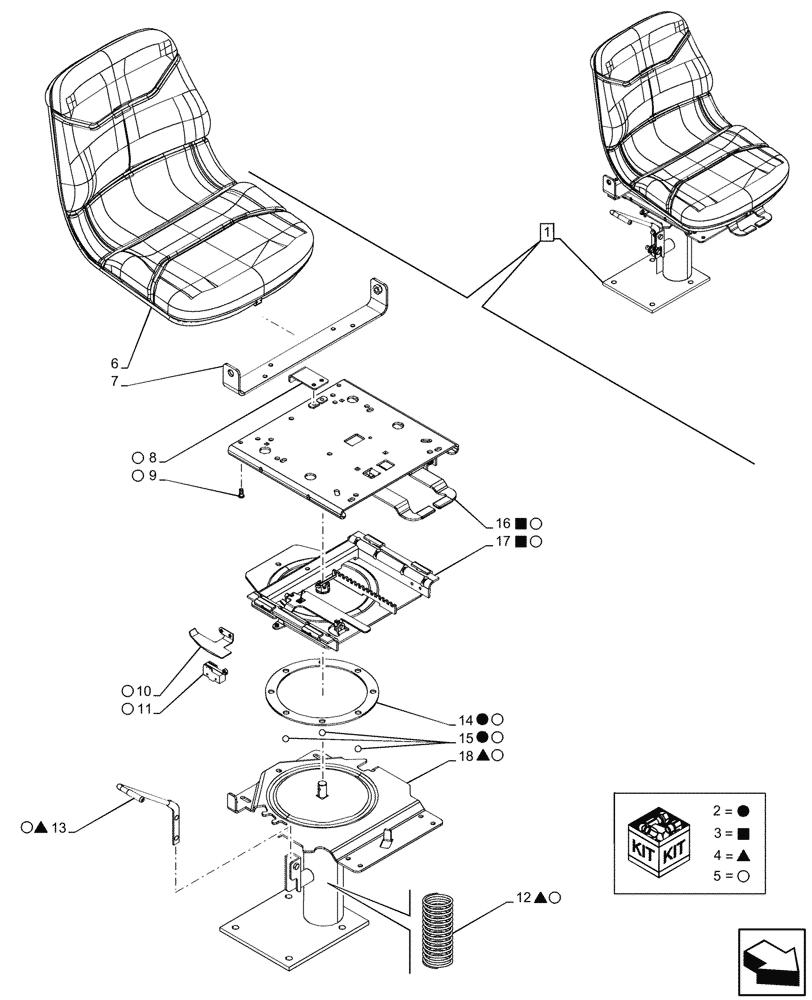

Запчасти Case 580N EP (90.120.020) - VAR - 747850 - DRIVER SEAT, COMPONENTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47939369

DRIVER SEAT

ASSY, Gray Vinyl, Incl 2 - 18

1шт.

2

87308132

BEARING ASSY

ASSY, Incl 14, 15

1шт.

3

87346634

SEAT ACCESSORY

ASSY, Slide Swivel, Incl 16, 17

1шт.

4

87346633

SEAT ACCESSORY

ASSY, Pedestal, Incl 12, 13, 18

1шт.

5

87346606

SEAT ACCESSORY

ASSY, Swivel and Pedestal, Incl 8 - 18

1шт.

6

47950289

SEAT BACK

Gray Vinyl, Top Assembly

1шт.

7

NSS

NOT SOLD SEPARAT

Seat Belt Anchorage, Incl in 1

1шт.

8

84174986

BRACKET

Front Stop

1шт.

9

87346612

SEAT ACCESSORY

Button Head Screw

4шт.

10

87346607

SEAT ACCESSORY

Lever, Switch Actuator

1шт.

11

84276130

SEAT ACCESSORY

Switch/Harness, Height Adjustment

1шт.

12

87346615

SEAT ACCESSORY

Spring

1шт.

13

87346611

SEAT ACCESSORY

Handle, Height Adjustment

1шт.

14

NSS

NOT SOLD SEPARAT

Retainer, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Bearing Ball, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Swivel Plate, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Pedestal, Incl in 1

1шт.
