(90.120.010) - VAR - 747850 - DRIVER SEAT

Запчасти Case 580N EP (90.120.010) - VAR - 747850 - DRIVER SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

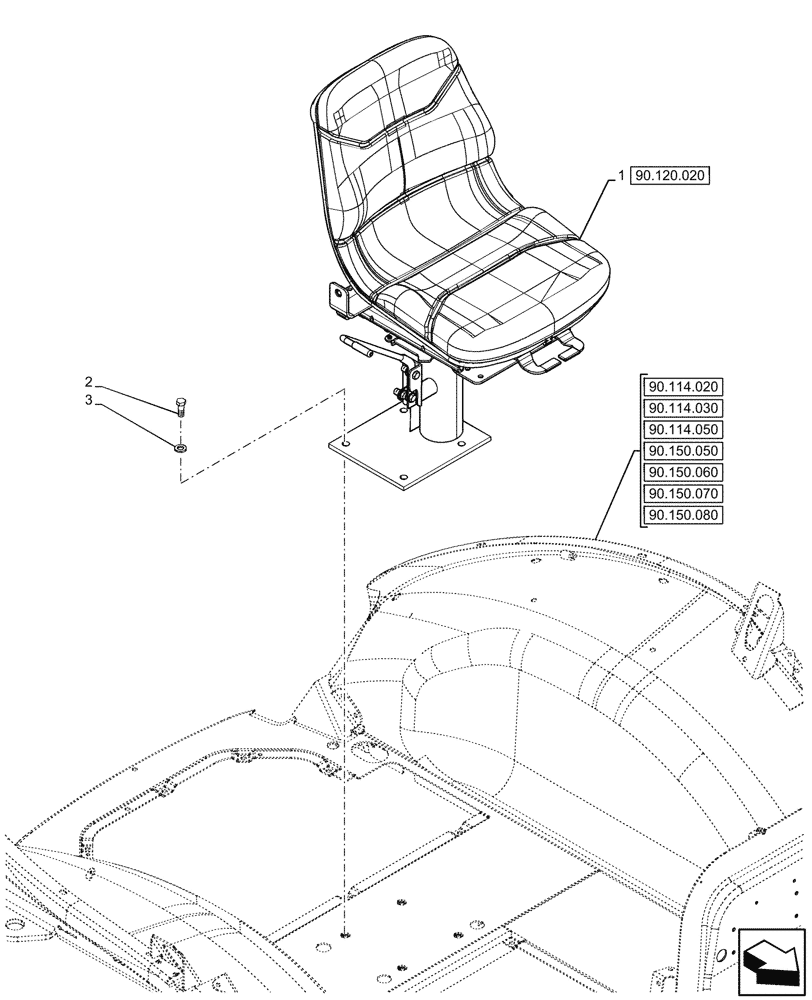

Схема запчастей Case 580N EP - (90.120.010) - VAR - 747850 - DRIVER SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.070
1
3
2
90.114.020
90.114.050
90.150.050
90.150.060
90.150.080
90.120.020
90.114.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47939369

DRIVER SEAT

ASSY, Gray Vinyl

1шт.

2

604-12030

BOLT,Hex, M12 x 30mm, Cl 8.8

4шт.

3

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

Выбрано товаров: 3
