(41.216.110) - STEERING CYLINDER HYD. LINE

Запчасти Case 580N EP (41.216.110) - STEERING CYLINDER HYD. LINE (41) - STEERING

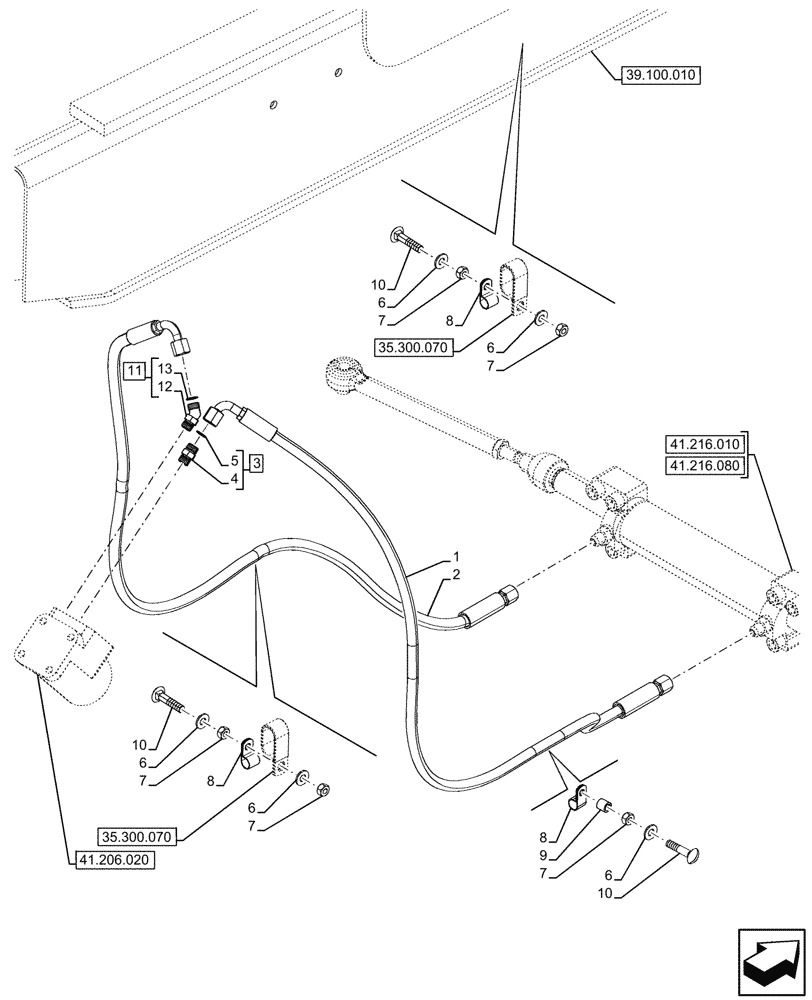

Схема запчастей Case 580N EP - (41.216.110) - STEERING CYLINDER HYD. LINE (41) - STEERING
35.300.070
6
5
10
2
8
6
11
4
8
3
7
8
6
7
9
6
7
6
10
12
7
1
10
7
41.216.080
41.206.020
13
41.216.010
39.100.010
35.300.070
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47604965

HYDRAULIC HOSE,10mm ID x 1535mm L

RH Steering, Pump to Front Axle

1шт.

2

47604954

HYDRAULIC HOSE,10mm ID x 1600mm L

LH Steering, Pump to Front Axle

1шт.

3

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

ASSY, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Connector, Incl in 3

1шт.

5

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

7

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

8

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

9

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

10

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

2шт.

11

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY, Incl 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 11

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
