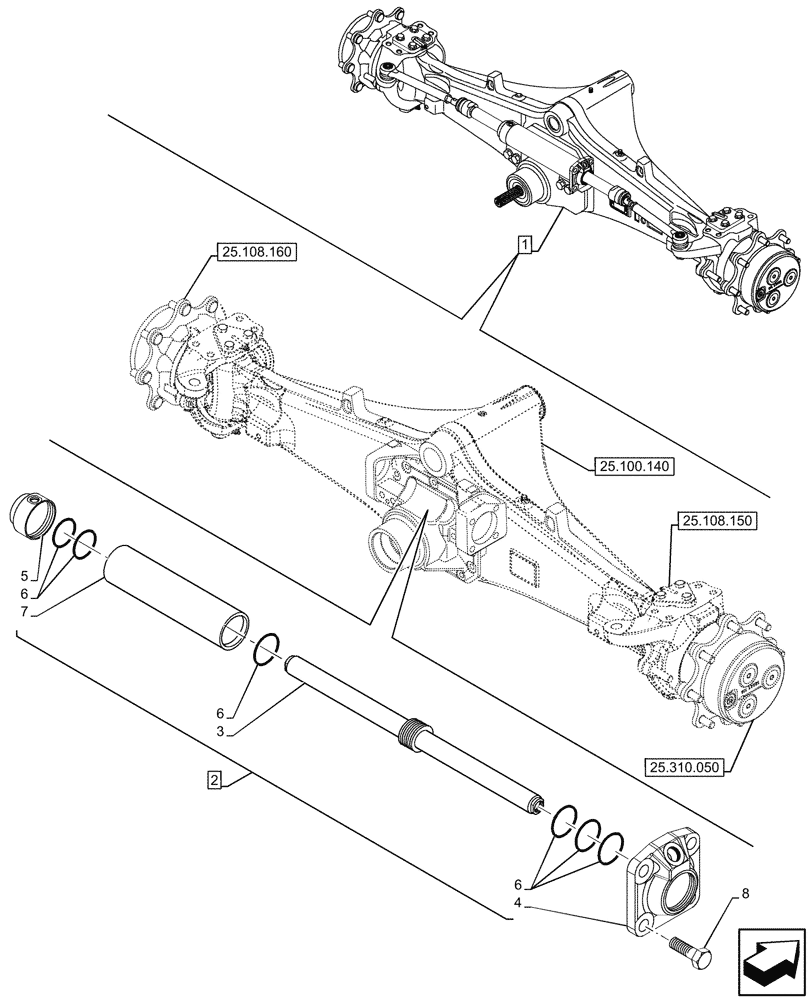

Запчасти Case 580N EP (41.216.080) - FRONT AXLE, COMPONENTS, STEERING CYLINDER, 4WD (41) - STEERING

1

47516353

FRONT AXLE

ASSY, Grey, PS1121, 13.3-1, Incl 2 - 8

1шт.

See also Front Axle Components in Figures 25.100.140, 25.100.150, 25.102.090, 25.102.100, 25.108.150, 25.108.160, 25.108.170, 25.310.050, 41.106.080

1шт.

2

84547074

STEERING CYLINDER,63mm Bore, 36mm Rod, 232mm Stroke

ASSY, Incl 3 - 7

1шт.

3

84556588

ROD,661mm L

Piston Steering Cylinder

1шт.

4

84556597

CAP

Cylinder End

1шт.

5

84556593

CAP

Cylinder End

1шт.

6

84556599

SEAL KIT

Steering Cylinder, 4WD

1шт.

7

NSS

NOT SOLD SEPARAT

Protective Sleeve, Incl in 2

1шт.

8

87015736

BOLT,M12 x 1.75 x 37.68mm, Cl 10.9

4шт.
