(41.206.090) - VAR - 423011 - POWER STEERING PUMP, LINE

Запчасти Case 580N EP (41.206.090) - VAR - 423011 - POWER STEERING PUMP, LINE (41) - STEERING

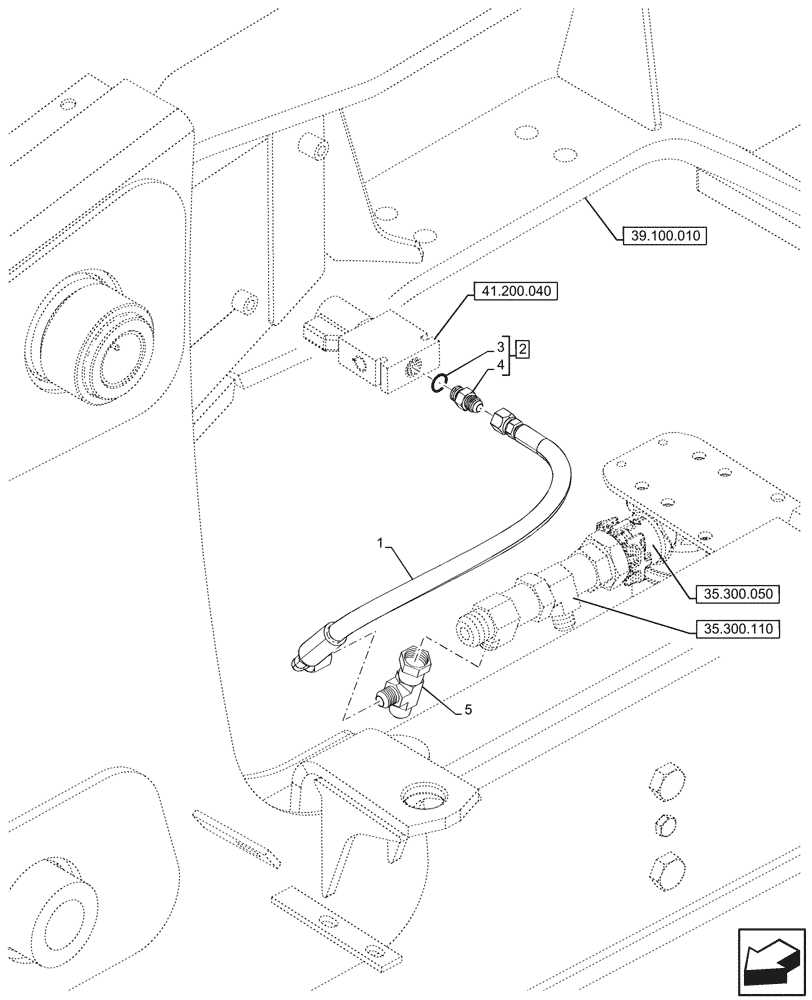

Схема запчастей Case 580N EP - (41.206.090) - VAR - 423011 - POWER STEERING PUMP, LINE (41) - STEERING
35.300.050
2
1
4
3
5
35.300.110
39.100.010
41.200.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47933026

HYDRAULIC HOSE,10mm ID, 530mm L, SAE100R6

1шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

ASSY, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 2

1шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

86632549

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run x 3/4"-16 Br

1шт.
