(90.100.020) - ENGINE HOOD

Запчасти Case 580N EP (90.100.020) - ENGINE HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

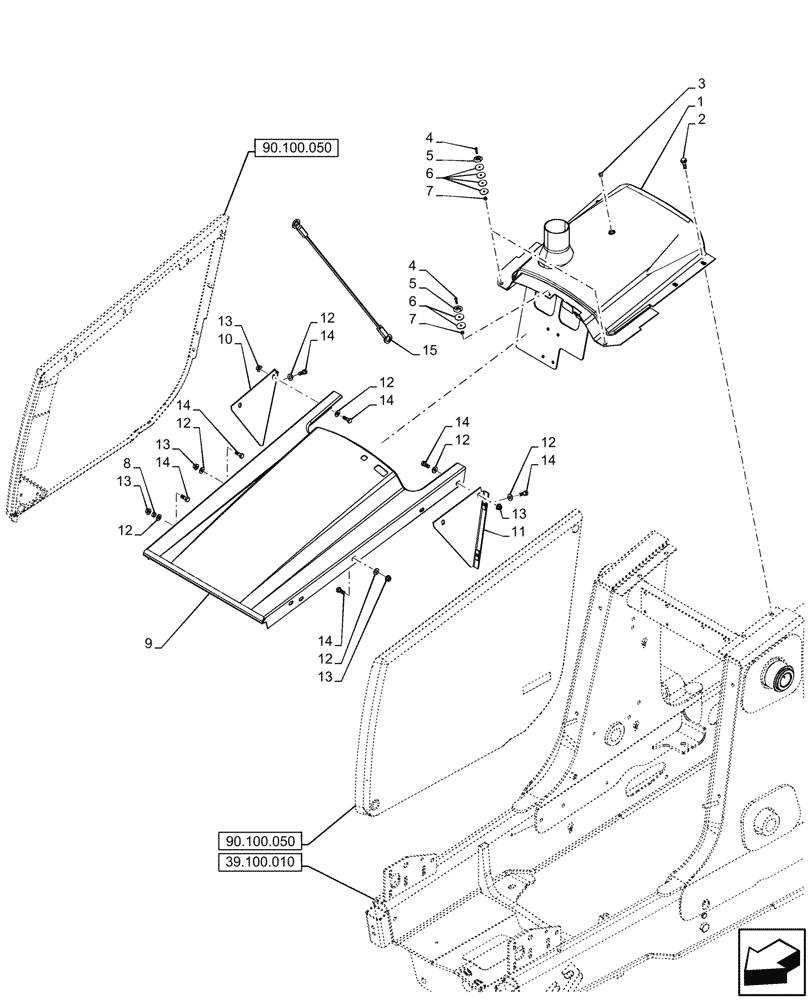

Схема запчастей Case 580N EP - (90.100.020) - ENGINE HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.100.050
13
11
12
14
13
6
12
4
14
7
3
5
2
9
14
1
15
14
12
5
8
13
14
12
13
13
6
12
7
14
12
10
14
12
4
39.100.010
90.100.050
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84541174

PLATE

Grey, Fixed Hood

1шт.

2

392828A2

BOLT,M10-1.5 x 40mm L W/CAPTURED WASHER

4шт.

3

353-403

PLUG,Dome, .437" hole, Nylon

1шт.

4

440-11014

SCREW,Cross Pan Hd, #10-24 x 7/8"

3шт.

5

109879A1

SPACER,5.5mm ID x 30mm OD

3шт.

6

185325A1

SPACER,5.5mm ID x 30mm OD x 2mm L

10шт.

7

231-14109

LOCK NUT,#10-24, GB

3шт.

8

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

1шт.

9

87594903

ENGINE HOOD

1шт.

10

362607A1

SUPPORT

RH

1шт.

11

362609A1

SUPPORT

LH

1шт.

12

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

12шт.

13

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

8шт.

14

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

8шт.

15

144908A2

CABLE,638mm L

Hood Retaining

1шт.
