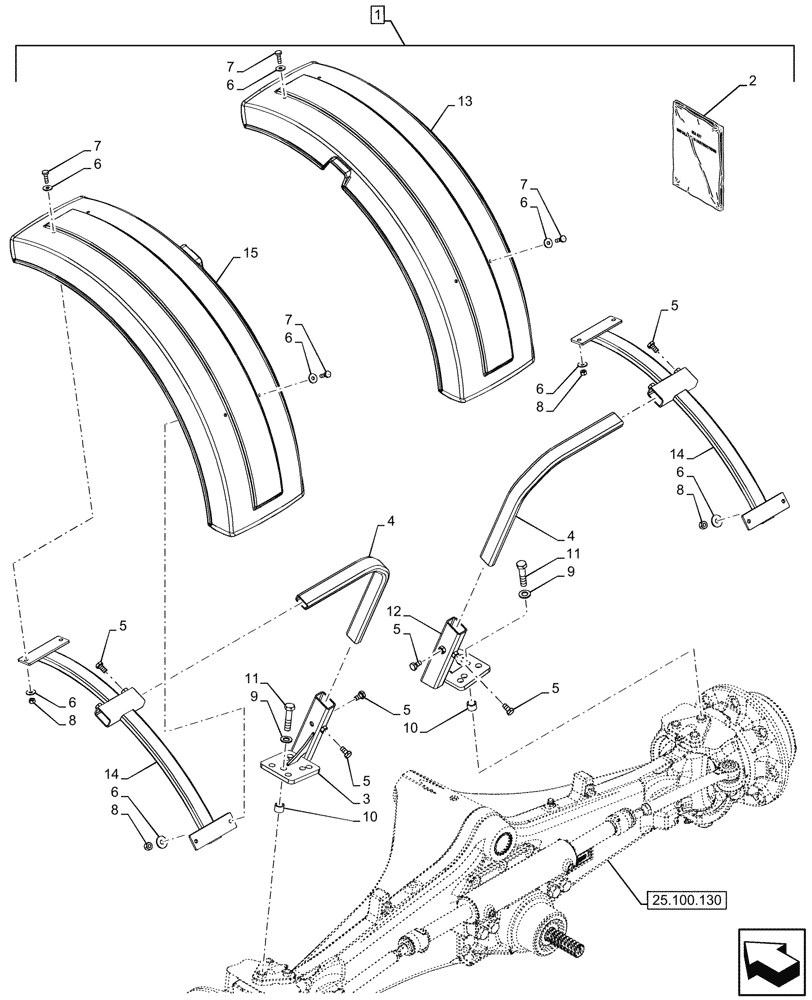

Запчасти Case 580N EP (88.100.90[04]) - DIA KIT, FRONT FENDER, 4WD (88) - ACCESSORIES

1

48067465

CONSTRUCTION DIA

Front Fenders, Incl 2 - 15

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

48067477

INSTRUCTION

1шт.

3

48008818

BRACKET

LH Fender Mounting

1шт.

4

85826132

SUPPORT

2шт.

5

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

8шт.

6

84007539

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.4mm Thk

16шт.

7

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

8шт.

8

86500656

LOCK NUT,M6 x 1, Cl 8

8шт.

9

14496831

WASHER,15mm ID x 28mm OD x 2.5mm Thk

6шт.

10

84576087

SPACER,0.66" ID x 0.88" OD x 0.62" L

6шт.

11

11116431

BOLT,Hex, M14 x 2 x 60mm, Cl 10.9

6шт.

12

48008822

BRACKET

RH Fender Mounting

1шт.

13

9968886

FRONT FENDER

RH

1шт.

14

9968884

SUPPORT

2шт.

15

9968885

FRONT FENDER

LH

1шт.
