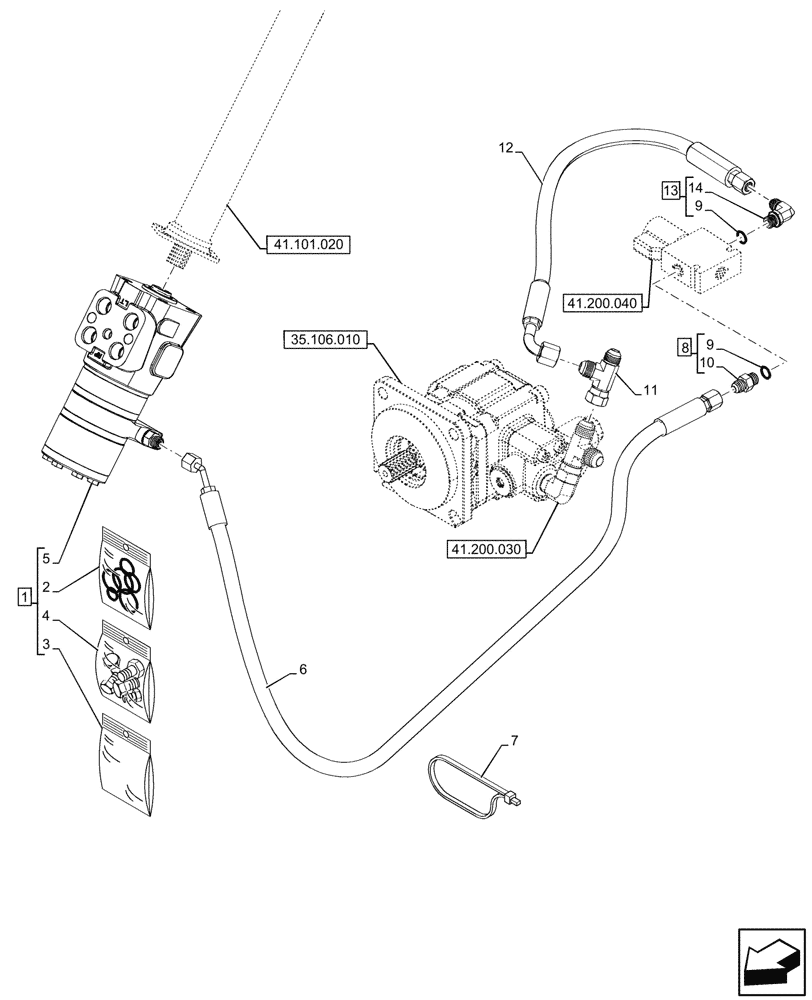

Запчасти Case 580N EP (41.206.080) - VAR - 423011 - POWER STEERING PUMP, LINE (41) - STEERING

1

87579286

STEERING VALVE

ASSY, Steering Column, Incl 2 - 5

1шт.

2

87454545

SEAL KIT

Power Steering Valve

1шт.

3

396592A1

KIT

Anti-Cavitation Valve

1шт.

4

87619415

SET OF SCREWS

KIT Bolt

1шт.

5

NSS

NOT SOLD SEPARAT

Pump, Incl in 1

1шт.

6

47607570

HYDRAULIC HOSE,6.3mm ID x 1250mm L

from Comfort Steer Solenoid to Pump Steering

1шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.

8

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

ASSY, Incl 9 (Qty 1), 10

1шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

10

NSS

NOT SOLD SEPARAT

Connector, Incl in 8

1шт.

11

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

12

47915404

HYDRAULIC HOSE,10mm ID, 590mm L, SAE100R16 type S

1шт.

13

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

ASSY, Incl 9 (Qty 1), 14

1шт.

14

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 13

1шт.
