Запчасти Case 580N EP (88.100.84[07]) - DIA KIT, EXTENDABLE DIPPER, UNIVERSAL, COUPLING, BACKHOE ARM, LINK (88) - ACCESSORIES

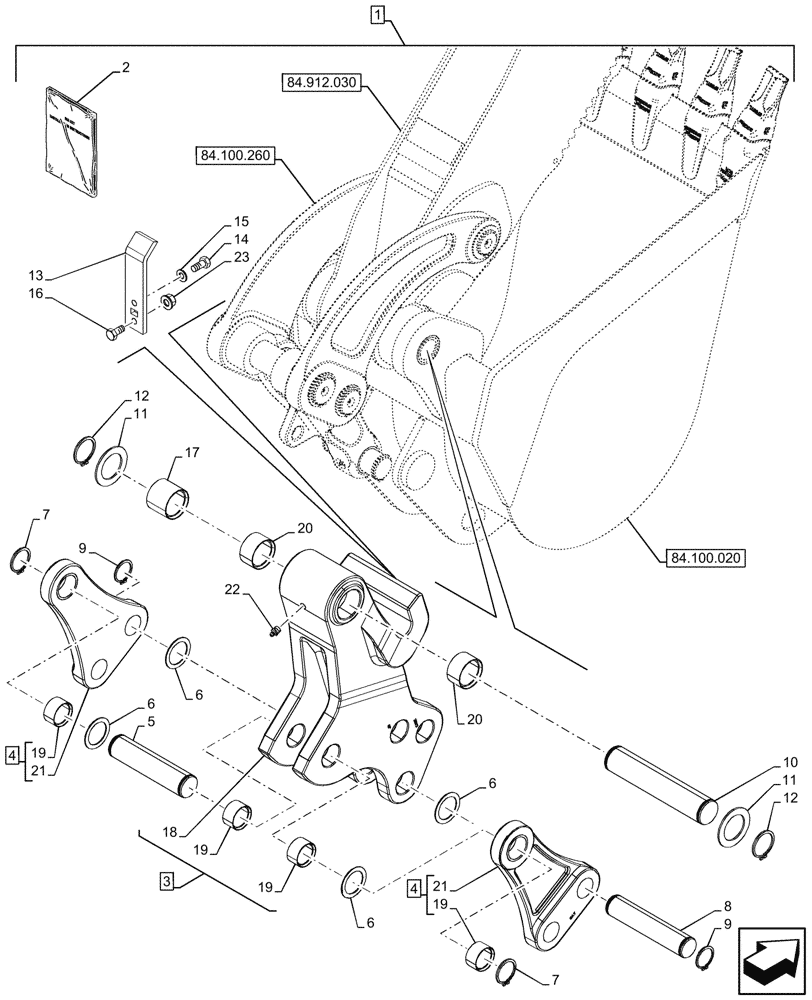

Схема запчастей Case 580N EP - (88.100.84[07]) - DIA KIT, EXTENDABLE DIPPER, UNIVERSAL, COUPLING, BACKHOE ARM, LINK (88) - ACCESSORIES
84.912.030
19
9
6
19
11
20
5
4
6
14
21
2
21
17
13
7
16
6
12
23
3
12
15
4
9
22
8
20
11
10
6
1
18
7
19
19
84.100.020
84.100.260

Артикул

Название

Примечание

Количество

1

48059277

CONSTRUCTION DIA

Universal Coupler, Backhoe, Incl 2 - 23

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

48059458

INSTRUCTION

1шт.

3

47959415

LINK

ASSY, Grey, Incl 18, 19 (Qty 2), 20

1шт.

4

47959089

LINK

ASSY, Grey, Incl 19 (Qty 2), 21

2шт.

5

47621518

PIN,49.9mm OD x 210mm L

Dump Link to Coupler

1шт.

6

87690482

WASHER,2.03" ID x 2.75" OD x 0.07" Thk

4шт.

7

87016943

RING, SNAP,50mm ID , Ext

2шт.

8

47621517

PIN,44.9mm OD x 220mm L

Switch Link to Coupler

1шт.

9

84163822

SNAP RING,45mm ID

2шт.

10

47674613

PIN,54.9mm OD x 276mm L

Coupler to Dipper

1шт.

11

495-81230

WASHER,2.31" ID x 3.5" OD x 0.13" Thk

2шт.

12

84233536

RING,55mm ID, Ext

2шт.

13

47928630

PLATE

1шт.

14

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

1шт.

15

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

16

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

1шт.

17

47816273

BUSHING,60.42mm ID x 67mm OD x 54.5mm L

1шт.

18

NSS

NOT SOLD SEPARAT

Link, Incl in 3

1шт.

19

84227018

BUSHING,50.19mm ID x 59.98mm OD x 29mm L

4шт.

20

84227023

BUSHING,67.75mm ID x 79.98mm OD x 30mm L

2шт.

21

NSS

NOT SOLD SEPARAT

Link, Incl in 4

1шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

23

87016577

NUT,M10

1шт.

Выбрано товаров: 24
