(88.100.55[03]) - DIA KIT, DUAL BATTERY, POSITIVE, CABLE

Запчасти Case 580N EP (88.100.55[03]) - DIA KIT, DUAL BATTERY, POSITIVE, CABLE (88) - ACCESSORIES

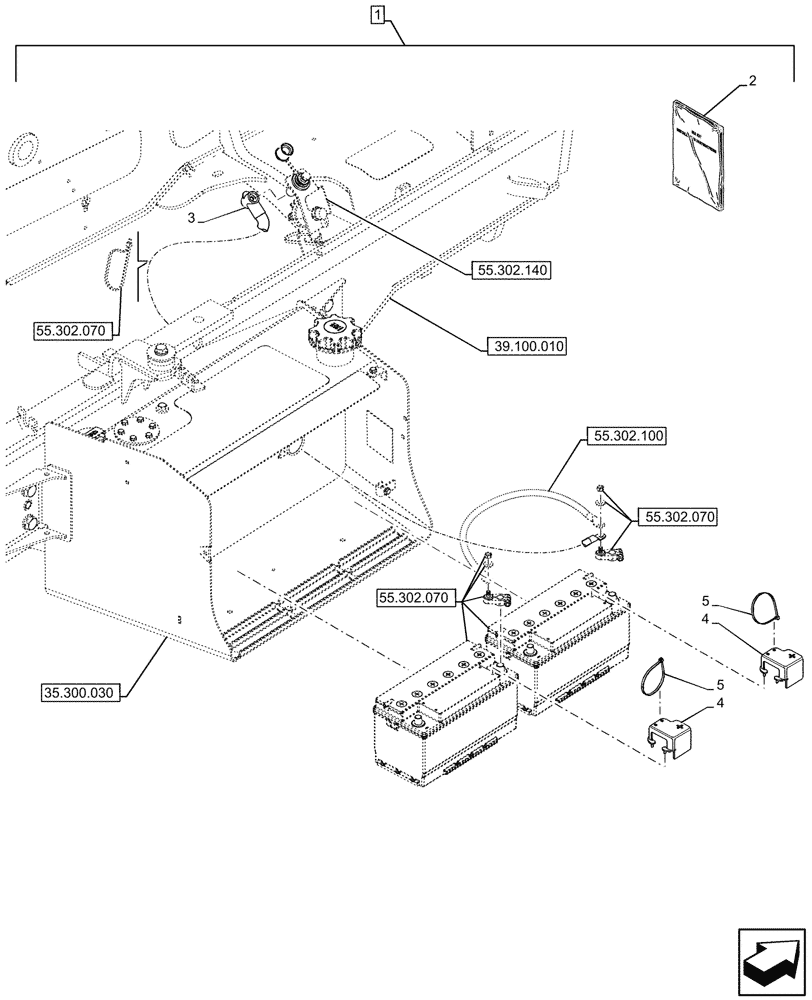

Схема запчастей Case 580N EP - (88.100.55[03]) - DIA KIT, DUAL BATTERY, POSITIVE, CABLE (88) - ACCESSORIES
55.302.140
1
5
2
4
3
5
4
39.100.010
55.302.100
55.302.070
55.302.070
55.302.070
35.300.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87722930

CONSTRUCTION DIA

Dual Battery, Incl 2 - 5

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

84376310

INSTRUCTION

1шт.

3

87610679

POS BATTERY CABLE

1шт.

4

87664021

COVER

2шт.

5

87486703

CABLE TIE,312mm L

2шт.

Выбрано товаров: 7
