Запчасти Case 580N EP (88.100.35[35]) - DIA KIT, BI-AUXILIARY PR VALVE SECTION, PILOT CONTROL (88) - ACCESSORIES

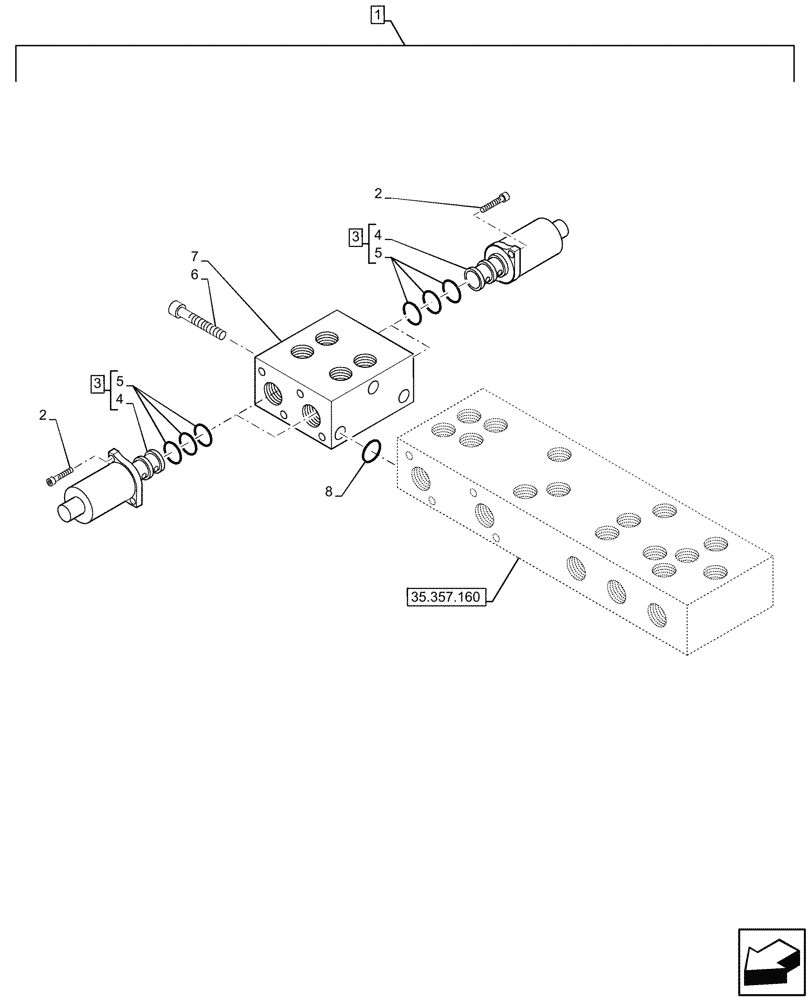

Схема запчастей Case 580N EP - (88.100.35[35]) - DIA KIT, BI-AUXILIARY PR VALVE SECTION, PILOT CONTROL (88) - ACCESSORIES
35.357.160
6
3
4
3
2
7
1
5
4
2
8
5

Артикул

Название

Примечание

Количество

1

87366503

HYDRAULIC VALVE

Bi-Auxiliary PR Valve Section, Pilot Control, Incl 2 - 8

1шт.

2

14302921

HEX SOC SCREW,M4 x 10mm, Cl 8.8, Full Thd

4шт.

3

85827993

SOLENOID VALVE

ASSY, Pressure Reducing, Incl 4, 5

2шт.

RH/LH Stab. Retract PWM, RH/LH Stab. Extend PWM & Extendahoe Retract/Extend PWM, Bi-Dir Aux A/B Port PWM

1шт.

4

NSS

NOT SOLD SEPARAT

Valve, Incl in 3

2шт.

5

85828000

SEAL KIT

4шт.

6

85828061

SCREW,M5 x 80mm

3шт.

7

85828048

MANIFOLD VALVE

1шт.

Extension Block added for Optional Extendahoe and Bi-Dir Aux Functions

1шт.

8

85827999

SEAL KIT

1шт.

Выбрано товаров: 10
