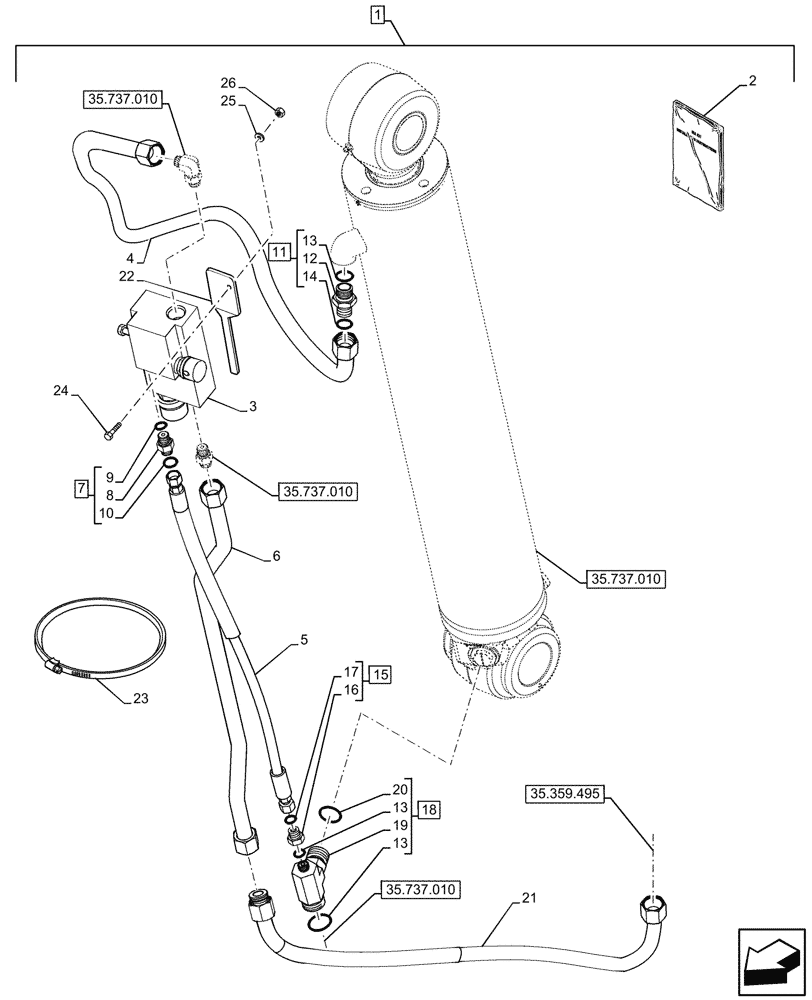

Запчасти Case 580N EP (88.100.35[29]) - DIA KIT, DIPPER, LOCK VALVE (88) - ACCESSORIES

1

84588432

CONSTRUCTION DIA

Dipper, Lock Valve, Incl 2 - 26

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

84588443

INSTRUCTION

1шт.

3

87353314

SAFETY VALVE

ASSY

1шт.

4

84537738

HYD TUBE

Dipper Lock Valve, Cylinder

1шт.

5

84574638

HYDRAULIC HOSE,6.3mm ID x 870mm L

Dipper Lock Valve, Pilot Control

1шт.

6

84537732

HYD TUBE

Dipper Lock Valve, Inlet

1шт.

7

201-111

HYD CONNECTOR,9/16" - 18 Male ORFS x 9/16" - 18 Male ORB

ASSY, Incl 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

1шт.

9

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

83962539

HYD CONNECTOR,1" - 14 ORFS x 1-1/16 - 12 ORB

ASSY, Incl 12, 13 (Qty 1), 14

1шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

1шт.

13

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

3шт.

14

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

15

84522377

REDUCER

ASSY, Incl 16, 17

1шт.

16

NSS

NOT SOLD SEPARAT

Reducer, Incl in 15

1шт.

17

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

18

87681197

HYD CONNECTOR

ASSY, Incl 13 (Qty 2), 19, 20

1шт.

19

NSS

NOT SOLD SEPARAT

Tee, Incl in 18

1шт.

20

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

21

84574589

HYDRAULIC HOSE,16mm ID x 2050mm L

Dipper Lock Valve, Pilot Control

1шт.

22

84558826

BRACKET

1шт.

23

214-3196

HOSE CLAMP,5-1/4" - 6-1/8", HD Worm

1шт.

24

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

25

83990583

LOCK WASHER,M8 x 14.8mm OD x 2.1mm Thk

1шт.

26

9706690

NUT,M8 x 1.25, Cl 8

1шт.
