(88.100.10[05]) - DIA KIT, CLOSED CRANKCASE VENTILATION HEATED

Запчасти Case 580N EP (88.100.10[05]) - DIA KIT, CLOSED CRANKCASE VENTILATION HEATED (88) - ACCESSORIES

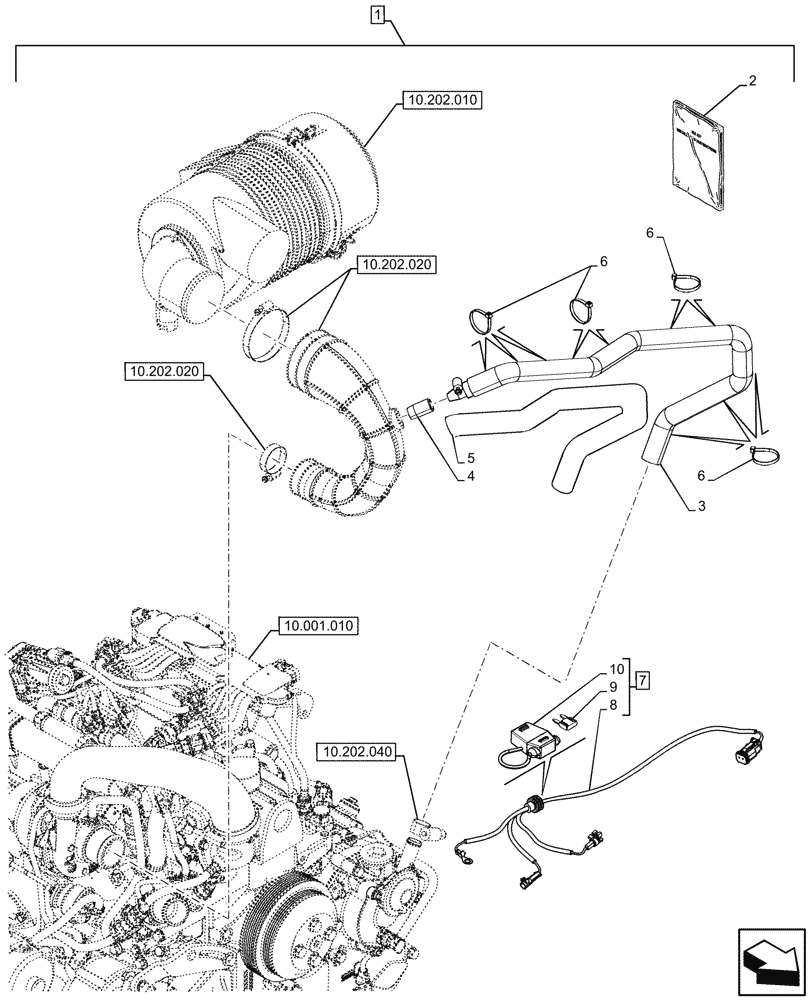

Схема запчастей Case 580N EP - (88.100.10[05]) - DIA KIT, CLOSED CRANKCASE VENTILATION HEATED (88) - ACCESSORIES
10.202.020
3
4
6
6
6
8
5
1
2
7
9
10
10.202.010
10.001.010
10.202.040
10.202.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47850063

CONSTRUCTION DIA

Closed Crankcase Ventilation Heated, Incl 2 - 10

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

2

47850071

INSTRUCTION

1шт.

3

47733741

HOSE

CCV Hose and Connector

1шт.

4

47727093

QUICK MALE COUPLING,17.8mm ID

1шт.

5

47691901

INSULATION

1шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

25шт.

7

47769957

WIRE HARNESS

ASSY, CCV Heated, Incl 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

Harness, Incl in 7

1шт.

9

84127702

FUSE,10A, Mini, Red

1шт.

10

87635519

FUSE HOLDER

1шт.
