(88.100.10[04]) - DIA KIT, HIGH AMBIENT

Запчасти Case 580N EP (88.100.10[04]) - DIA KIT, HIGH AMBIENT (88) - ACCESSORIES

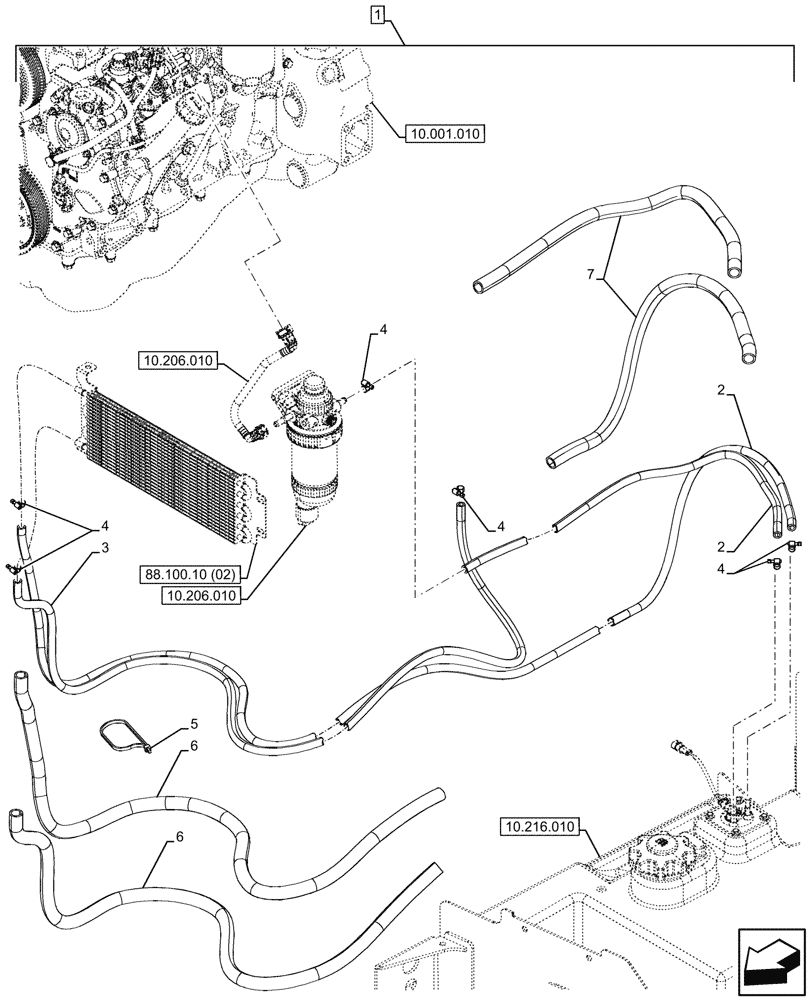

Схема запчастей Case 580N EP - (88.100.10[04]) - DIA KIT, HIGH AMBIENT (88) - ACCESSORIES
10.206.010
5
2
4
6
6
7
4
2
1
3
4
4
88.100.10 (02)
10.216.010
10.001.010
10.206.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47788903

CONSTRUCTION DIA

High Ambient, Incl 1 - 7

1шт.

2

47589005

FUEL HOSE,9.5mm ID x 2770mm L

Return Cooler to Tank

1шт.

3

47589006

FUEL HOSE,9.5mm ID x 1700mm L

Suction Engine to Cooler

1шт.

4

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

4шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

4шт.

6

47611880

HOSE PROTECTION,19mm ID x 1105mm L

2шт.

7

84249061

HOSE PROTECTION,19mm ID x 820mm L

1шт.
