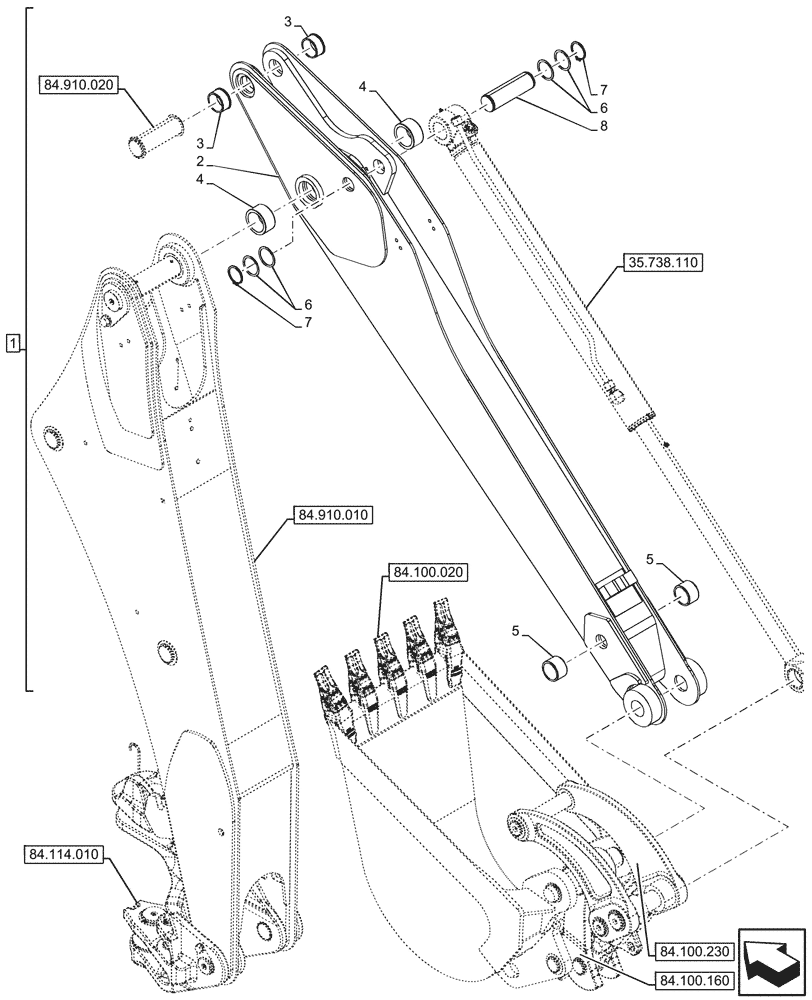

Запчасти Case 580N EP (84.912.040) - VAR - 423075 - STANDARD DIPPER, BACKHOE ARM (84) - BOOMS, DIPPERS & BUCKETS

1

47632826

DIPPER

ASSY, Power Tan, Incl 2 - 5

1шт.

2

NSS

NOT SOLD SEPARAT

Dipper, Incl in 1

1шт.

3

84223633

BUSHING,60.19mm ID x 69.98mm OD x 34mm L

2шт.

4

D137218

BUSHING,70.19mm ID x 90mm OD x 44mm L

2шт.

5

84170645

BUSHING,50.19mm ID x 60mm OD x 36mm L

2шт.

6

84224845

SHIM,62mm ID x 75mm OD x 1.5mm Thk

4шт.

7

84224886

RING,60mm ID, Ext

2шт.

8

84217320

PIN,60mm OD x 199mm L

Cylinder to Dipper

1шт.
