Запчасти Case 580N EP (84.100.160) - VAR - 442018 - BACKHOE BUCKET, MECH. COUPLER, STANDARD DIPPER, LINK 14FT (84) - BOOMS, DIPPERS & BUCKETS

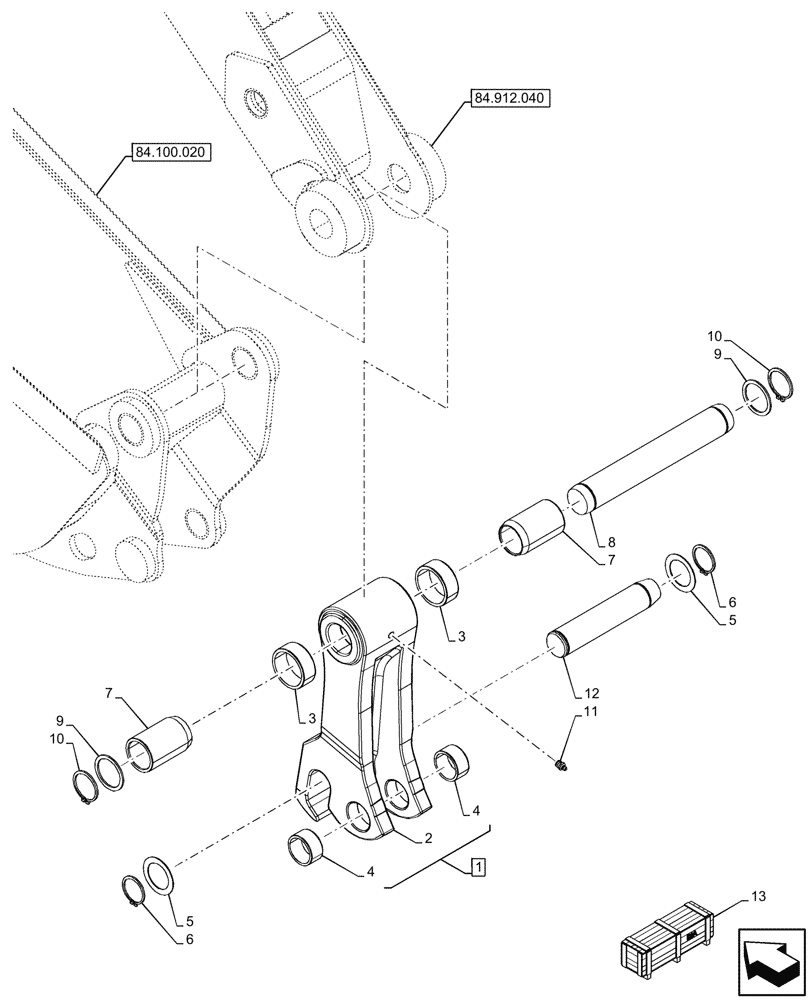

Схема запчастей Case 580N EP - (84.100.160) - VAR - 442018 - BACKHOE BUCKET, MECH. COUPLER, STANDARD DIPPER, LINK 14FT (84) - BOOMS, DIPPERS & BUCKETS
84.912.040
8
4
10
7
3
6
12
4
2
5
3
7
6
9
10
11
5
13
1
9
84.100.020

Артикул

Название

Примечание

Количество

1

47959421

LINK

ASSY, Grey, Incl 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Link, Incl in 1

1шт.

3

84227023

BUSHING,67.75mm ID x 79.98mm OD x 30mm L

2шт.

4

84227018

BUSHING,50.19mm ID x 59.98mm OD x 29mm L

2шт.

5

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

2шт.

6

87016943

RING, SNAP,50mm ID , Ext

2шт.

7

84224880

BUSHING,55.28mm ID x 67.53mm OD x 104mm L

2шт.

8

84223654

PIN,55mm OD x 372.6mm L

Bucket to Dipper

1шт.

9

84231927

SHIM,57mm ID x 70mm OD x 2.77mm Thk

2шт.

10

84233536

RING,55mm ID, Ext

2шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

12

84223653

PIN,50mm OD x 246.1mm L

Bucket

1шт.

13

47955841

CONSTRUCTION DIA

Mechanical Coupler Upgrade, Incl 1 - 4, 7, 9 - 11

1шт.

Valid for 580N EP (Livery), 580N (Livery), 580SN (Livery), 580SN WT (Livery) Models Only, W/ Standard Dipper

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 15
