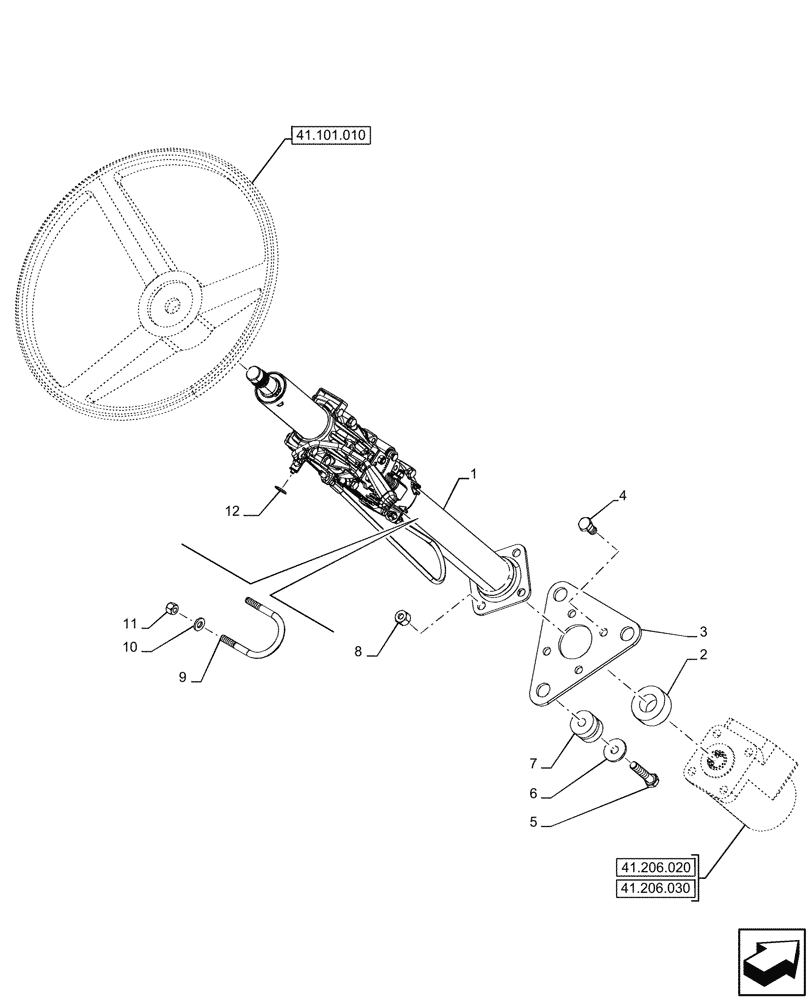

Запчасти Case 580N EP (41.101.030) - VAR - 742651 - CAB, STEERING COLUMN, W/ TILTABLE STEERING COLUMN (41) - STEERING

1

47575687

STEERING COLUMN,Tilting

Tilt Cab

1шт.

2

352401A1

SEAL,25mm ID x 48mm OD x 19mm Thk

Foamsound

1шт.

3

388116A2

PLATE

Pump Mount

1шт.

4

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

5

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

3шт.

6

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

3шт.

7

87447450

ISOLATOR

Steering Pump

3шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

9

379846A1

U-BOLT,M8 x 1.25, Round, 58.7mm W, 78mm L

1шт.

10

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

11

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

12

47626788

LOCK WASHER

1шт.
