Запчасти Case 580N EP (84.100.060) - VAR - 423064 - BUCKET, TRENCH 24INCH/610MM (84) - BOOMS, DIPPERS & BUCKETS

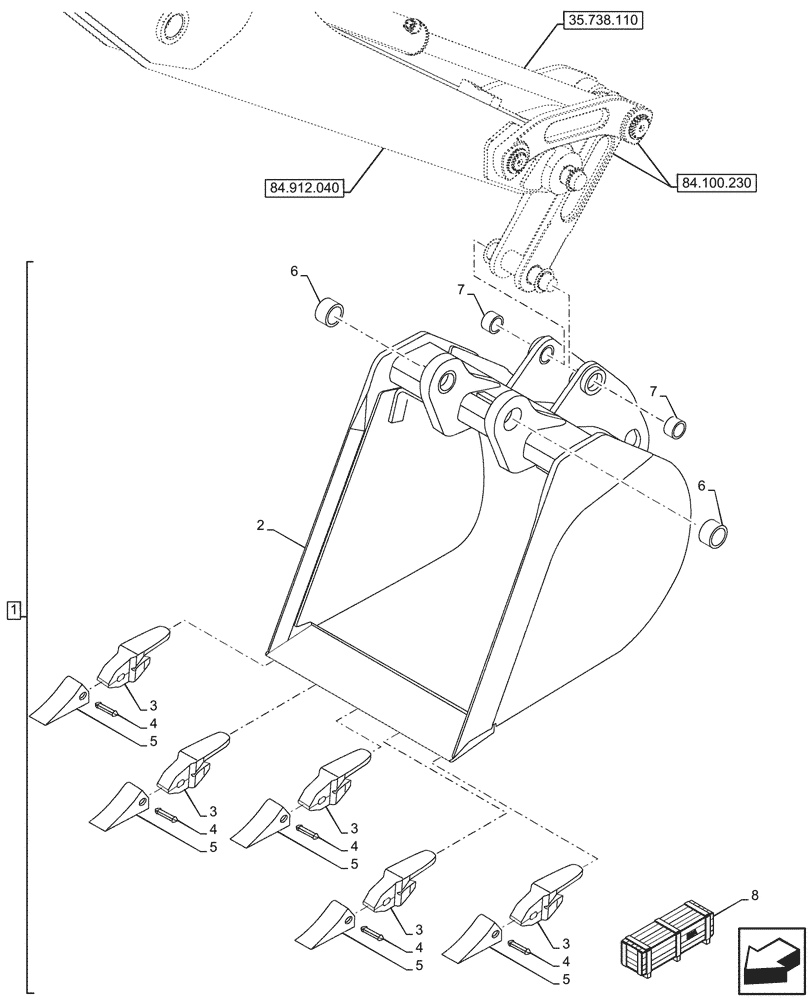

Схема запчастей Case 580N EP - (84.100.060) - VAR - 423064 - BUCKET, TRENCH 24INCH/610MM (84) - BOOMS, DIPPERS & BUCKETS
84.912.040
5
5
4
3
6
7
7
5
3
4
3
6
4
1
8
4
5
2
4
5
3
3
84.100.230
35.738.110

Артикул

Название

Примечание

Количество

1

84416554

BUCKET,24 Inch GP Trenching

Grey, ASSY, 24in/610mm, Trench, with 5 Teeth, Incl 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

84318731

BUCKET TOOTH SHANK

5шт.

4

84318739

BUCKET TOOTH KEY

5шт.

5

84318713

BUCKET TOOTH

5шт.

6

84244076

BUSHING,55.19mm ID x 65mm OD x 31.75mm L

2шт.

7

84244078

BUSHING,50.19mm ID x 60mm OD x 31.75mm L

2шт.

8

84467280

BUCKET

Bucket 24 Inch General Pourpose Tranching, Incl 1 - 7

1шт.

Valid for 580N EP (Livery), 580N (Livery) Models only

1шт.

Выбрано товаров: 9
