(82.300.130) - VAR - 423079 - BUCKET, 82INCH/2083MM LONG LIP

Запчасти Case 580N EP (82.300.130) - VAR - 423079 - BUCKET, 82INCH/2083MM LONG LIP (82) - FRONT LOADER & BUCKET

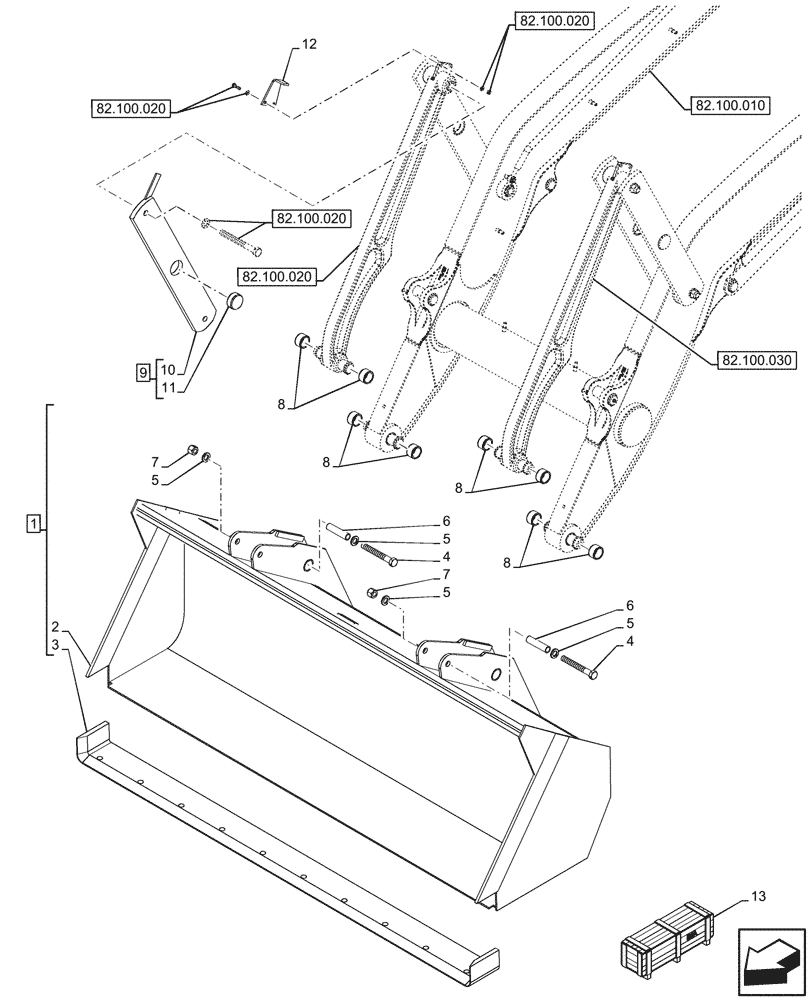

Схема запчастей Case 580N EP - (82.300.130) - VAR - 423079 - BUCKET, 82INCH/2083MM LONG LIP (82) - FRONT LOADER & BUCKET
82.100.020
8
10
4
5
4
8
2
8
7
5
11
5
5
12
1
6
3
8
6
7
13
9
82.100.010
82.100.030
82.100.020
82.100.020
82.100.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84422709

BUCKET,82 Inch LL

ASSY, Grey, 1YD 82Inch/2083mm HD LL, Incl 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

132988A1

CUTTING EDGE

1шт.

4

828-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

2шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

6

142538A1

SPACER,21mm ID x 25mm OD x 105mm L

2шт.

7

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

8

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

8шт.

9

47959100

LINK

ASSY, Grey, Incl 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Link, Incl in 9

1шт.

11

47865950

BUSHING,50.26mm ID x 59.98mm OD x 25.4mm L

1шт.

12

D121194

POINTER

1шт.

13

84466054

BUCKET

Bucket 82 Inch, Incl 1 - 8

1шт.

Valid for 580N EP (Livery), 580N (Livery) Models only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
