(82.300.120) - VAR - 747539 - BUCKET, 93INCH/2362MM LONG LIP

Запчасти Case 580N EP (82.300.120) - VAR - 747539 - BUCKET, 93INCH/2362MM LONG LIP (82) - FRONT LOADER & BUCKET

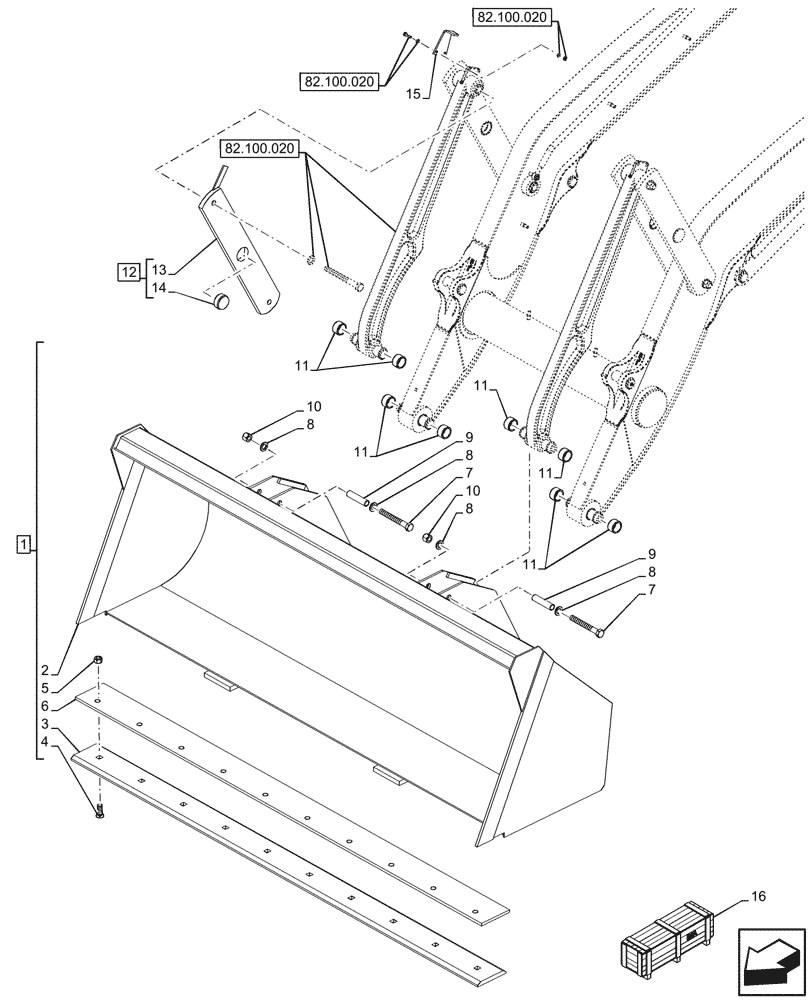

Схема запчастей Case 580N EP - (82.300.120) - VAR - 747539 - BUCKET, 93INCH/2362MM LONG LIP (82) - FRONT LOADER & BUCKET
82.100.020
1
10
15
12
16
8
8
8
2
11
8
11
11
9
14
7
3
5
7
9
10
6
4
11
13
11
82.100.020
82.100.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84470522

BUCKET,93 Inch LLGP W/ Blade

ASSY, Grey, 93Inch/2362mm, Incl 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

Bucket, Incl in 1

1шт.

3

87375240

CUTTING EDGE,Bolt On, 10 Holes, 19mm W x 2392mm L

1шт.

4

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

10шт.

5

429-1012

NUT,3/4"-10, G8

10шт.

6

134844A1

CUTTING EDGE,Bolt On, 10 Holes, 12mm W x 2389mm L

1шт.

7

828-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

2шт.

8

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

9

142538A1

SPACER,21mm ID x 25mm OD x 105mm L

2шт.

10

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

11

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

8шт.

12

47959100

LINK

ASSY, Grey, Incl 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

Link, Incl in 12

1шт.

14

47865950

BUSHING,50.26mm ID x 59.98mm OD x 25.4mm L

1шт.

15

D121194

POINTER

1шт.

16

84482612

SERVICE KIT

Bucket 93 Inch Long Lip General Pourpose with Blade, Incl 1 - 11

1шт.

Valid for 580N EP (Livery) Model only

1шт.
