(82.300.110) - VAR - 747863 - 4-IN-1 BUCKET, 82INCH/2083MM

Запчасти Case 580N EP (82.300.110) - VAR - 747863 - 4-IN-1 BUCKET, 82INCH/2083MM (82) - FRONT LOADER & BUCKET

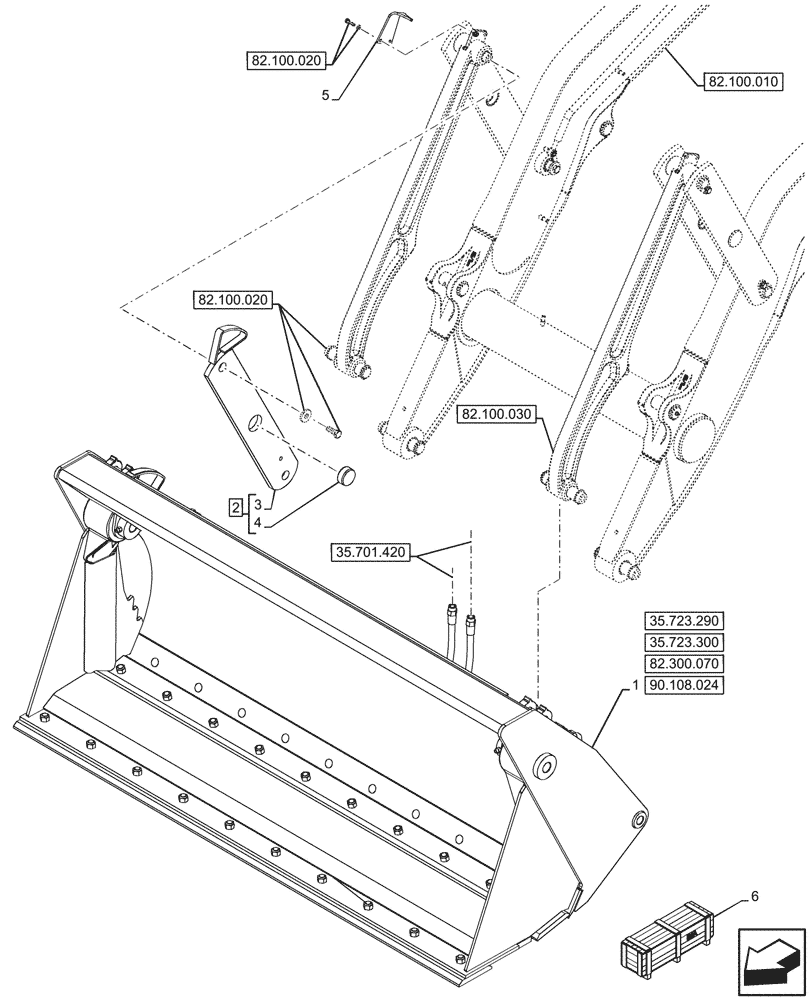

Схема запчастей Case 580N EP - (82.300.110) - VAR - 747863 - 4-IN-1 BUCKET, 82INCH/2083MM (82) - FRONT LOADER & BUCKET
90.108.024
4
2
6
3
5
1
35.723.290
82.100.010
35.701.420
82.100.030
82.300.070
35.723.300
82.100.020
82.100.020
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47802379

4 IN 1 BUCKET,82" L

ASSY, 82in/2082mm 4-IN-1

1шт.

2

47959581

LINK

ASSY, Grey, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Link, Incl in 2

1шт.

4

47865950

BUSHING,50.26mm ID x 59.98mm OD x 25.4mm L

1шт.

5

48017563

POINTER

1шт.

6

48054424

CONSTRUCTION DIA

Bucket 82Inch 4 in 1, Incl 1 - 5

1шт.

Valid for 580N EP (Livery), 580N (Livery), 580SN (Livery) Models only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
