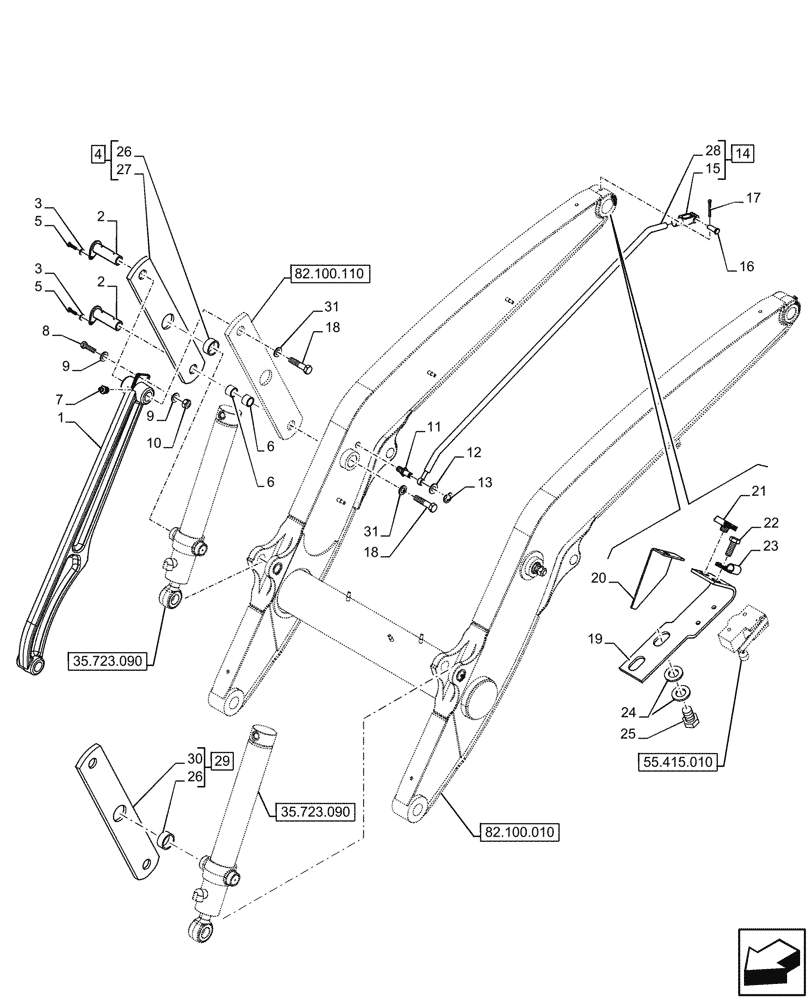

Запчасти Case 580N EP (82.100.020) - ARM, LINKAGE (82) - FRONT LOADER & BUCKET

1

47948342

LINK

Grey

2шт.

2

84270815

PIN,38.07mm OD x 173.5mm L

4шт.

3

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

4

47948341

LINK

ASSY, Grey

1шт.

5

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

6

100696A1

BUSHING,38.41mm ID x 47.65mm OD x 28.6mm L

4шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

8

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

10

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

11

192815A1

PIN,1/2" - 13, 1.85" L

1шт.

12

495-11053

WASHER,1/2", SAE

1шт.

13

103-3350

SNAP RING,#50, .392" Dia, E-Type

1шт.

14

87712370

ROD

ASSY, Power Tan, Incl 15, 28

1шт.

15

D134900

CLEVIS,3/8-24"

1шт.

16

87548980

CLEVIS PIN,3/8" x 1"

1шт.

17

432-612

COTTER PIN,3/32" x 3/4"

1шт.

18

43168

BOLT,Hex, M16 x 40mm, Cl 8.8

4шт.

19

128818A1

SUPPORT

Switch

1шт.

20

142524A1

PROTECTOR

1шт.

21

833-40406

NUT,M6, U

2шт.

22

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

23

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

1шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

25

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

2шт.

26

47865950

BUSHING,50.26mm ID x 59.98mm OD x 25.4mm L

3шт.

27

NSS

NOT SOLD SEPARAT

Link, Incl in 1

1шт.

28

NSS

NOT SOLD SEPARAT

Rod, Incl in 14

1шт.

29

47948333

LINK

ASSY, Grey, Incl 26, 30

2шт.

30

NSS

NOT SOLD SEPARAT

Link, Incl in 29

2шт.

31

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

4шт.
