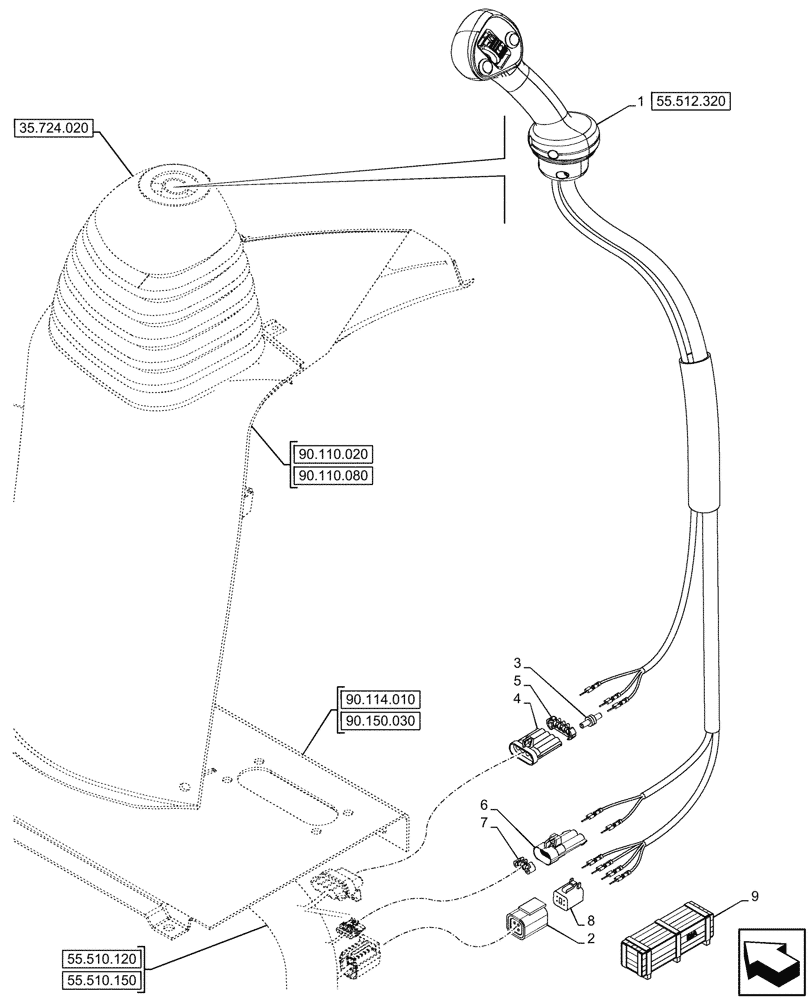

Запчасти Case 580N EP (55.512.310) - 3-SPOOL CONTROL VALVE, POWERSHUTTLE, TRANSMISSION, LOADER, JOYSTICK MOUNTING (55) - ELECTRICAL SYSTEMS

1

87638047

JOYSTICK

ASSY, Loader Control 3 Spool

1шт.

2

225327C1

WEDGE,Lock, Black

1шт.

3

298176A1

PLUG

1шт.

4

256347A1

CONNECTOR, ELEC,Male, 4 Cavities

1шт.

5

258616A1

LOCK

1шт.

6

256341A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

7

258613A1

LOCK

1шт.

8

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

1шт.

9

47661818

CONSTRUCTION DIA

3 Spool Valve, Incl 1 - 8

1шт.

Valid for 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Standard Transmission and Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

9

47955703

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 8

1шт.

Valid for 580N EP (Livery) Model Only, W/ Pilot Control

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

9

47955708

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 8

1шт.

Valid for 580N (Livery) Model Only, W/ Mechanical Control and Powershuttle Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

9

47955728

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 8

1шт.

Valid for 580SN (Livery), 580SN WT (Livery), 590SN (Livery) Models Only, W/ Mechanical Control and Standard Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

9

47955743

CONSTRUCTION DIA

Loader Valve 3 Spool, Incl 1 - 8

1шт.

Valid for 580N (Livery) Model Only, W/ Pilot Control and Powershuttle Transmission

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
