(55.510.230) - CANOPY, POWERSHUTTLE, TRANSMISSION, FRONT CONSOLE, HARNESS W/O OPT

Запчасти Case 580N EP (55.510.230) - CANOPY, POWERSHUTTLE, TRANSMISSION, FRONT CONSOLE, HARNESS W/O OPT (55) - ELECTRICAL SYSTEMS

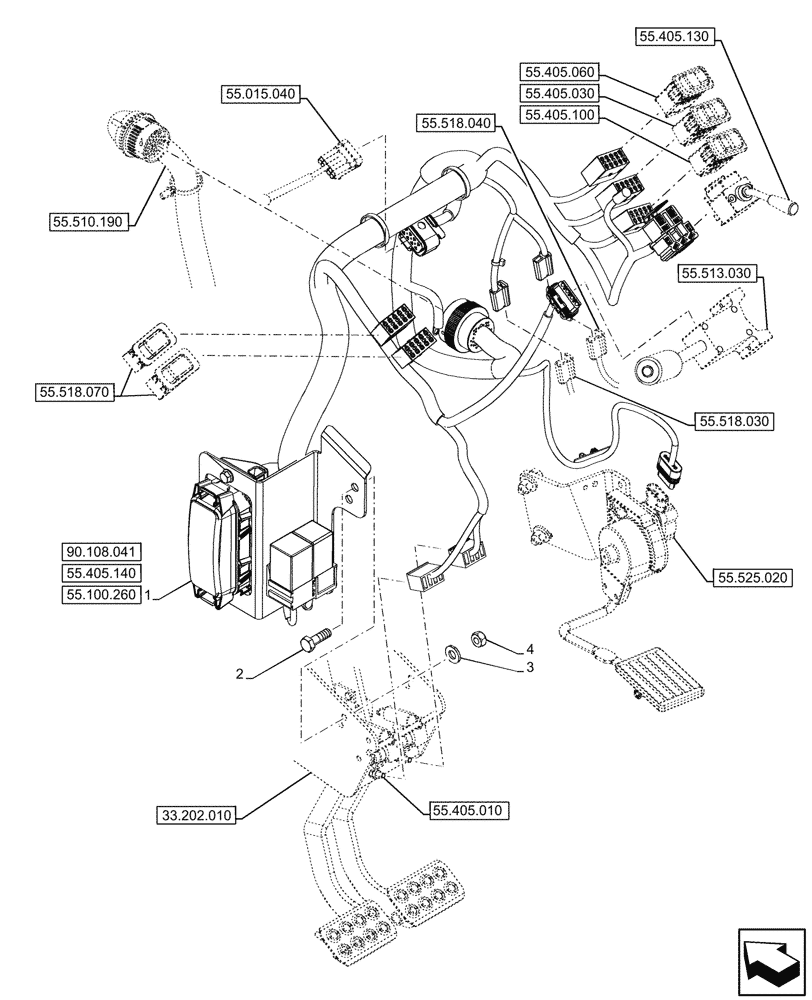

Схема запчастей Case 580N EP - (55.510.230) - CANOPY, POWERSHUTTLE, TRANSMISSION, FRONT CONSOLE, HARNESS W/O OPT (55) - ELECTRICAL SYSTEMS
55.525.020
2
4
3
1
55.405.140
55.100.260
55.513.030
55.405.030
55.015.040
55.405.130
33.202.010
55.518.030
55.405.100
55.510.190
55.405.060
90.108.041
55.518.070
55.518.040
55.405.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47714104

WIRE HARNESS

ASSY, Front Console, Canopy, STD Transmission

1шт.

2

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

3

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.
