(55.510.200) - CAB, POWERSHUTTLE, TRANSMISSION, RIGHT SIDE, CONSOLE, HARNESS

Запчасти Case 580N EP (55.510.200) - CAB, POWERSHUTTLE, TRANSMISSION, RIGHT SIDE, CONSOLE, HARNESS (55) - ELECTRICAL SYSTEMS

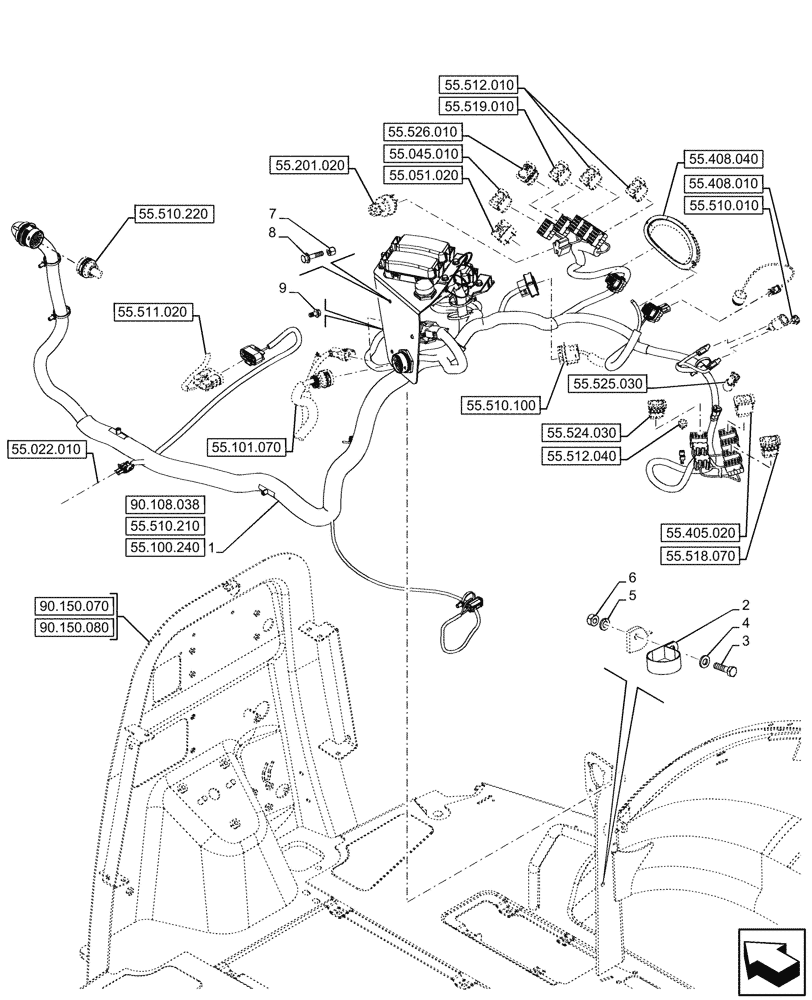

Схема запчастей Case 580N EP - (55.510.200) - CAB, POWERSHUTTLE, TRANSMISSION, RIGHT SIDE, CONSOLE, HARNESS (55) - ELECTRICAL SYSTEMS
55.045.010
9
1
2
8
3
7
6
4
5
55.201.020
55.405.020
55.519.010
55.526.010
55.022.010
55.510.220
55.512.010
55.100.240
55.524.030
55.510.210
55.511.020
55.101.070
55.510.010
90.150.080
55.510.100
55.408.040
55.525.030
55.051.020
55.408.010
55.518.070
90.108.038
55.512.040
90.150.070
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47714206

WIRE HARNESS

ASSY, Side Console, Cab, STD Transmission

1шт.

2

515-23444

CLAMP,1 3/4", Insul, 3/8" Bolt

1шт.

3

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

4

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

5

892-11008

LOCK WASHER,8mm ID

1шт.

6

824-1408

NUT,M8 x 1.25, Cl 10

1шт.

7

832-10406

NUT,M6 x 1, Cl 8

2шт.

8

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

9

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.
