Запчасти Case 580N EP (55.425.020) - VAR - 423078, 747669 - BACKHOE ARM, PILOT CONTROLS, HARNESS (55) - ELECTRICAL SYSTEMS

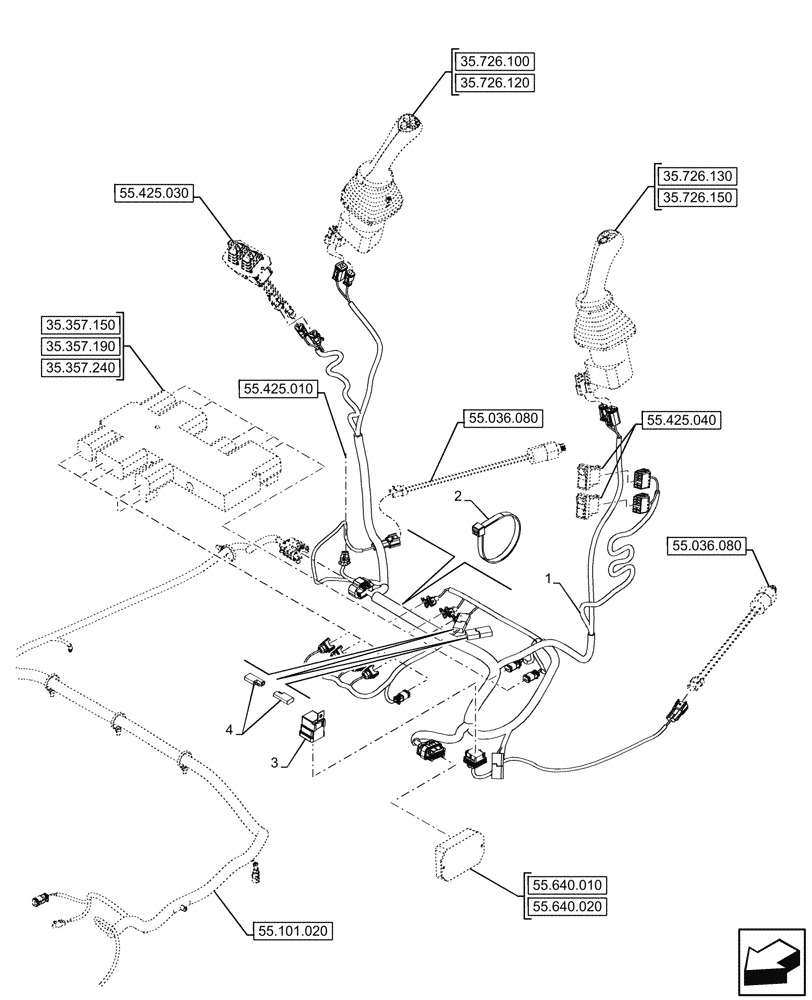

Схема запчастей Case 580N EP - (55.425.020) - VAR - 423078, 747669 - BACKHOE ARM, PILOT CONTROLS, HARNESS (55) - ELECTRICAL SYSTEMS
55.640.020
2
1
4
3
55.101.020
35.726.130
35.726.150
55.640.010
55.036.080
55.036.080
35.357.190
55.425.030
35.357.240
55.425.010
35.726.100
55.425.040
35.357.150
35.726.120

Артикул

Название

Примечание

Количество

1

84342284

HARNESS

Pilot Control, ASSY, Incl 3, 4

1шт.

2

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

3

293256A2

RELAY,12V

1шт.

4

L71879

DIODE ELEMENT,400V, 3A

3шт.

Выбрано товаров: 4
