(55.302.090) - VAR - 423093 - DUAL BATTERY, NEGATIVE, CABLE

Запчасти Case 580N EP (55.302.090) - VAR - 423093 - DUAL BATTERY, NEGATIVE, CABLE (55) - ELECTRICAL SYSTEMS

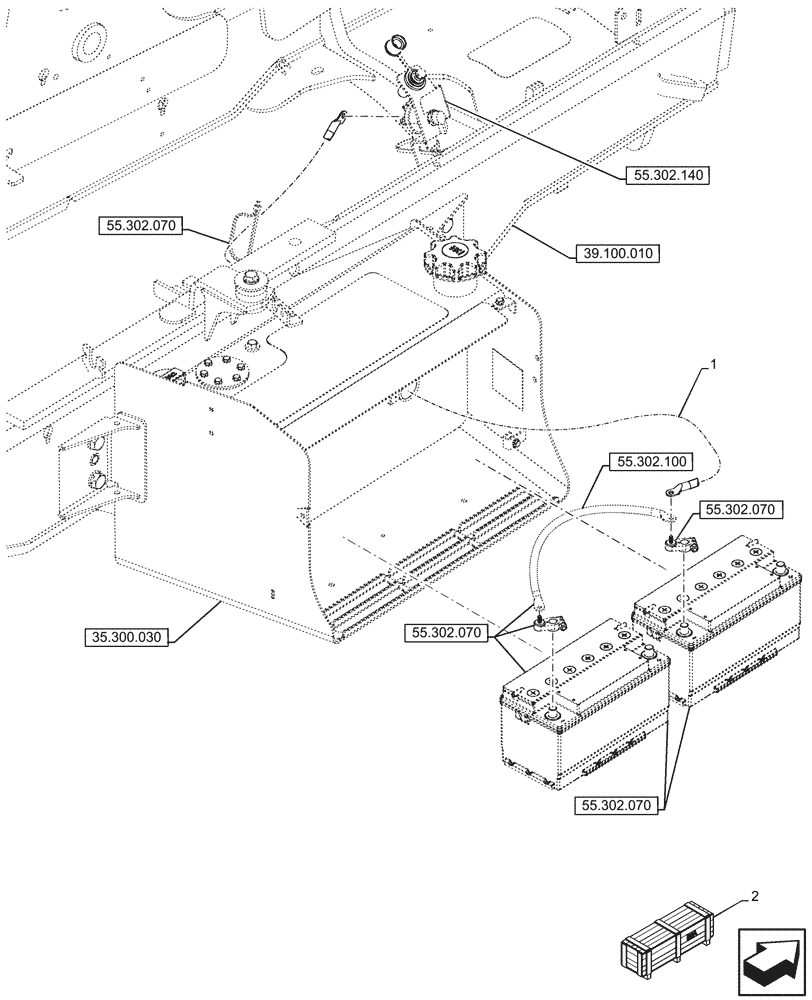

Схема запчастей Case 580N EP - (55.302.090) - VAR - 423093 - DUAL BATTERY, NEGATIVE, CABLE (55) - ELECTRICAL SYSTEMS
55.302.140
2
1
55.302.100
39.100.010
35.300.030
55.302.070
55.302.070
55.302.070
55.302.070
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87610680

NEG BATTERY CABLE,1200mm L

From Battery to Chassis Ground Stud

1шт.

2

87722930

CONSTRUCTION DIA

Dual Battery, Incl 1

1шт.

Valid for 580N EP (Livery) Model only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 4
