(10.254.020) - ENGINE, MUFFLER, MECHANICAL

Запчасти Case 580N (10.254.020) - ENGINE, MUFFLER, MECHANICAL (10) - ENGINE

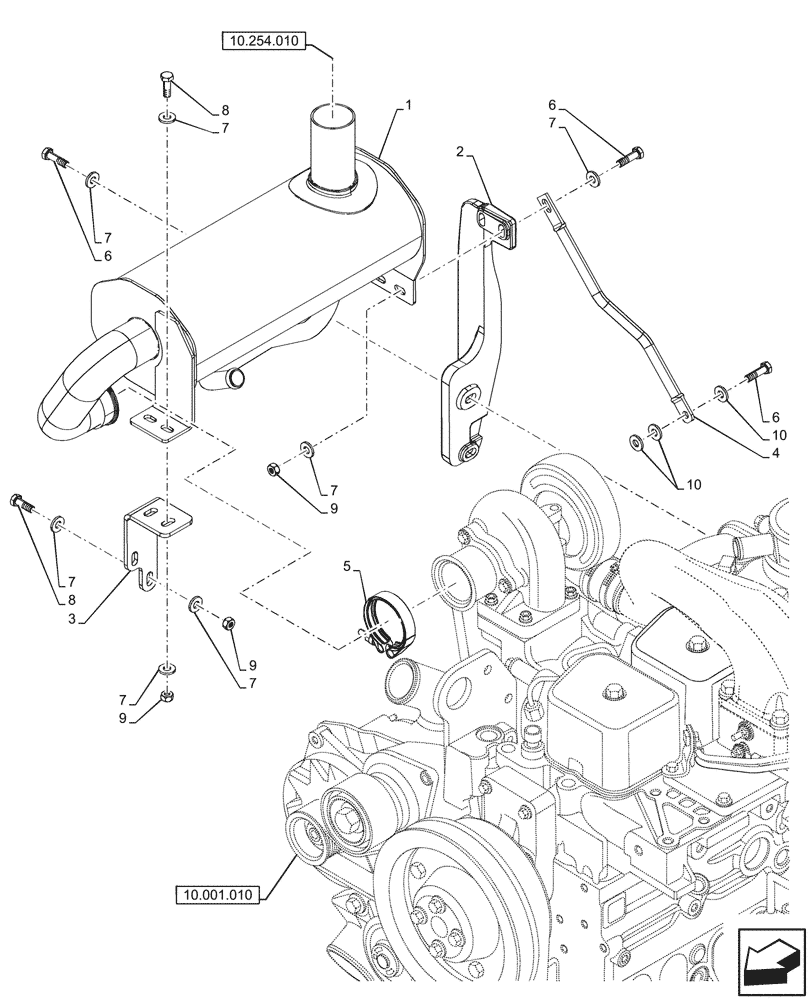

Схема запчастей Case 580N - (10.254.020) - ENGINE, MUFFLER, MECHANICAL (10) - ENGINE
10.001.010
1
7
7
4
6
10
7
7
6
5
3
9
7
9
2
6
10
9
7
8
8
7
10.254.010
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87617576

MUFFLER,W/O Spark Arrestor, Aspirated

Aspirated Mechanical Engine

1шт.

2

87451167

SUPPORT

Mounting Muffler

1шт.

3

87423531

BRACKET, SUPPORTING

Front Muffler Support

1шт.

4

87442357

BRACE

Rear Muffler

1шт.

5

A170467

CLAMP,72mm ID

1шт.

6

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

5шт.

7

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

14шт.

8

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

10

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

3шт.
