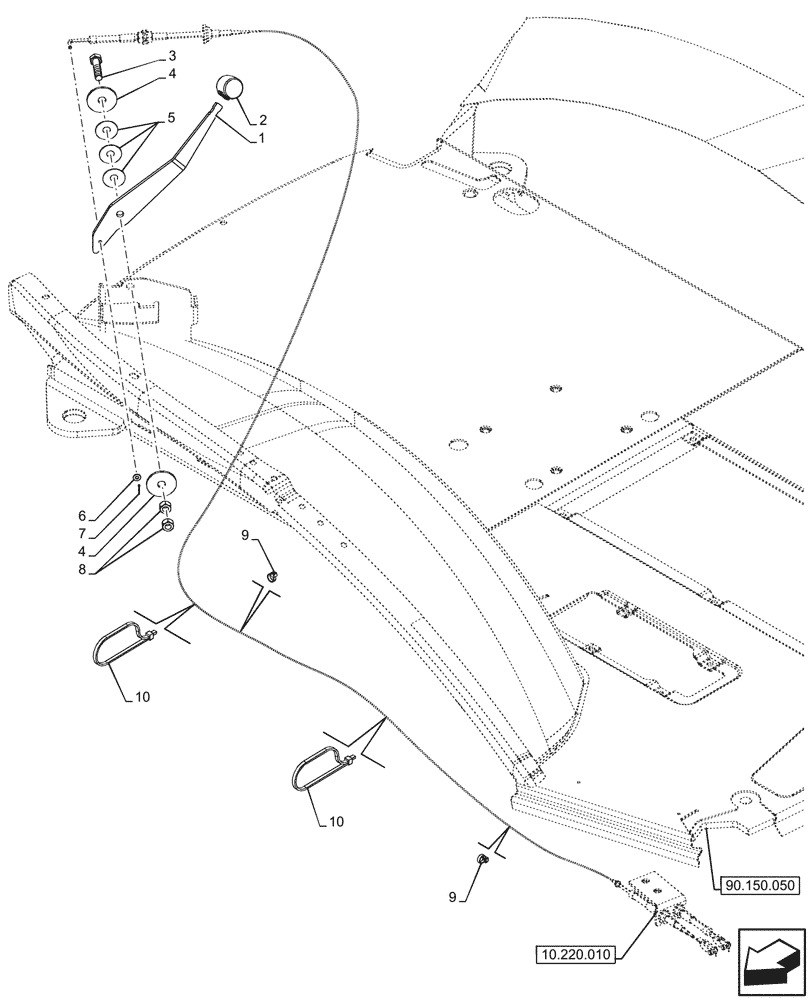

Запчасти Case 580N (10.220.020) - THROTTLE CONTROL LINKAGE, HAND CONTROL (10) - ENGINE

1

395189A2

LEVER

Hand Throttle

1шт.

2

A177435

BALL KNOB

1шт.

3

514-847

BOLT,Hex, M12 x 1.25 x 50mm, Cl 8.8

1шт.

4

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

2шт.

5

D148962

WASHER,12.7mm ID x 38.1mm OD x 1.19mm Thk

3шт.

6

495-31022

WASHER,#10

1шт.

7

432-48

COTTER PIN,1/16" x 1/2"

1шт.

8

825-11412

NUT,M12 x 1.25, Cl 8

2шт.

9

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

10

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.
