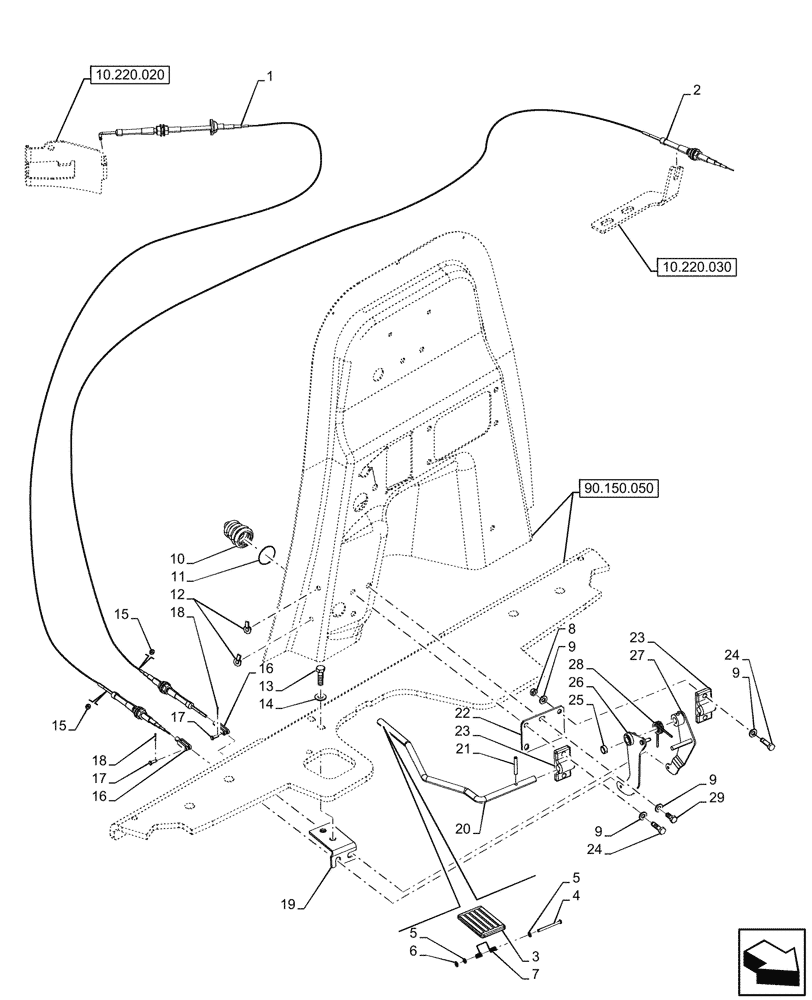

Запчасти Case 580N (10.220.010) - THROTTLE CONTROL LINKAGE, FOOT CONTROL (10) - ENGINE

1

87340753

CABLE,2250mm L

Hand Throttle

1шт.

2

87340754

CABLE,1829mm L

Foot Throttle

1шт.

3

282242A1

PEDAL

Foot Throttle

1шт.

4

322860A1

PIN,7.9mm OD x 55.6mm L

1шт.

5

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

6

103-1518

SNAP RING,#18, Ext

1шт.

7

256776A1

SPRING

Foot Throttle

1шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

9

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

7шт.

10

132931A1

BOOT

1шт.

11

189109A1

SPRING,Compression, 42mm OD

1шт.

12

84189106

PLUG

2шт.

13

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

14

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

15

225-14210

NUT,#10-32

3шт.

16

213-123

ADJUSTABLE CLEVIS,#10-32 x 1 9/16"

2шт.

17

427-3058

CLEVIS PIN,3/16" x .580"

2шт.

18

432-48

COTTER PIN,1/16" x 1/2"

2шт.

19

84347956

BRACKET

1шт.

20

87593642

ROD,12.7mm OD

Throttle Cross Shaft

1шт.

21

838-3640

PIN,M6 x 40, Coiled

1шт.

22

378955A1

PLATE

1шт.

23

87345006

BLOCK

2шт.

24

87378776

BOLT,Hex, M8 x 30mm, Cl 8.8

4шт.

25

378958A1

SPACER, RING

1шт.

26

378957A3

LEVER ASSY.

W/ Hand Throttle

1шт.

27

84347958

LEVER ASSY.

W/ Foot Throttle

1шт.

28

380483A2

SPRING

1шт.

29

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.
