Запчасти Case 580N (10.216.020) - FUEL TANK, LINE (10) - ENGINE

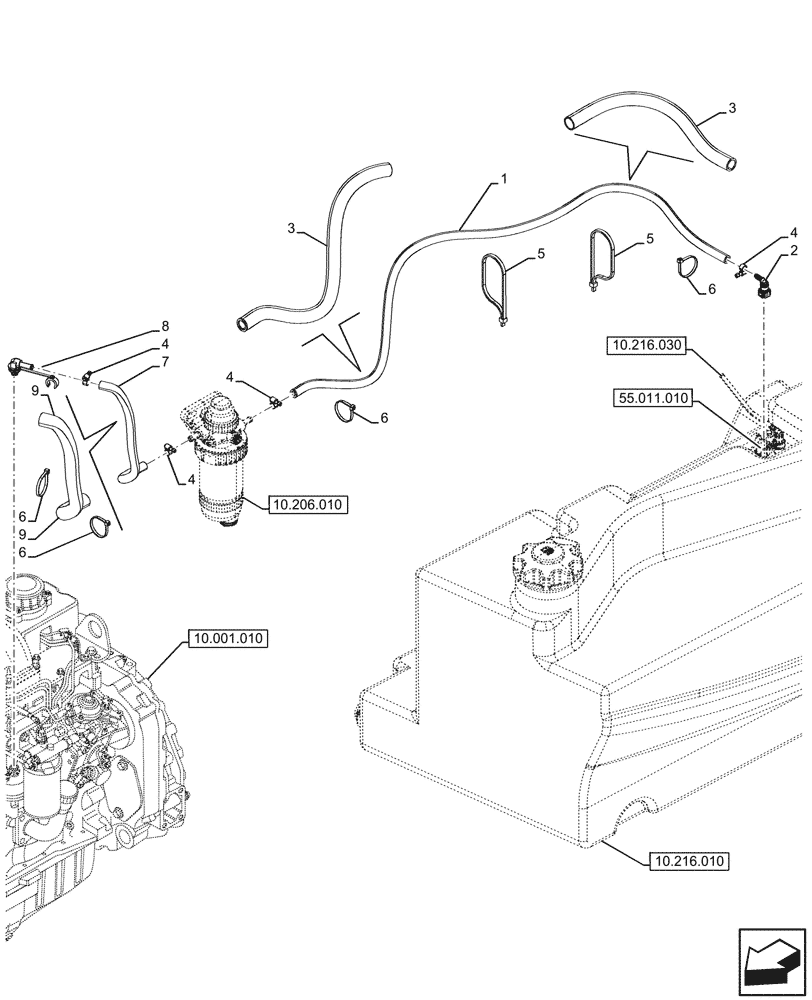

Схема запчастей Case 580N - (10.216.020) - FUEL TANK, LINE (10) - ENGINE
55.011.010
1
6
4
6
6
4
3
5
3
6
2
4
7
4
9
5
8
9
10.206.010
10.216.010
10.216.030
10.001.010

Артикул

Название

Примечание

Количество

1

87658696

FUEL HOSE,9.53 mm ID x 1315.00 mm, SAE 30R7

Fuel Tank to Fuel Filter Inlet

1шт.

2

84532958

FITTING,9.49mm ID, 3/8" OD, 90 Degree

90° Elbow

1шт.

3

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

2шт.

4

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

4шт.

5

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

7

87739247

HOSE,9.53mm ID x 375mm L, SAE 30R7

Fuel Filter Outlet to Lift Pump

1шт.

8

87414560

90 ELBOW

1шт.

9

87498489

HOSE PROTECTION

1шт.

Выбрано товаров: 9
