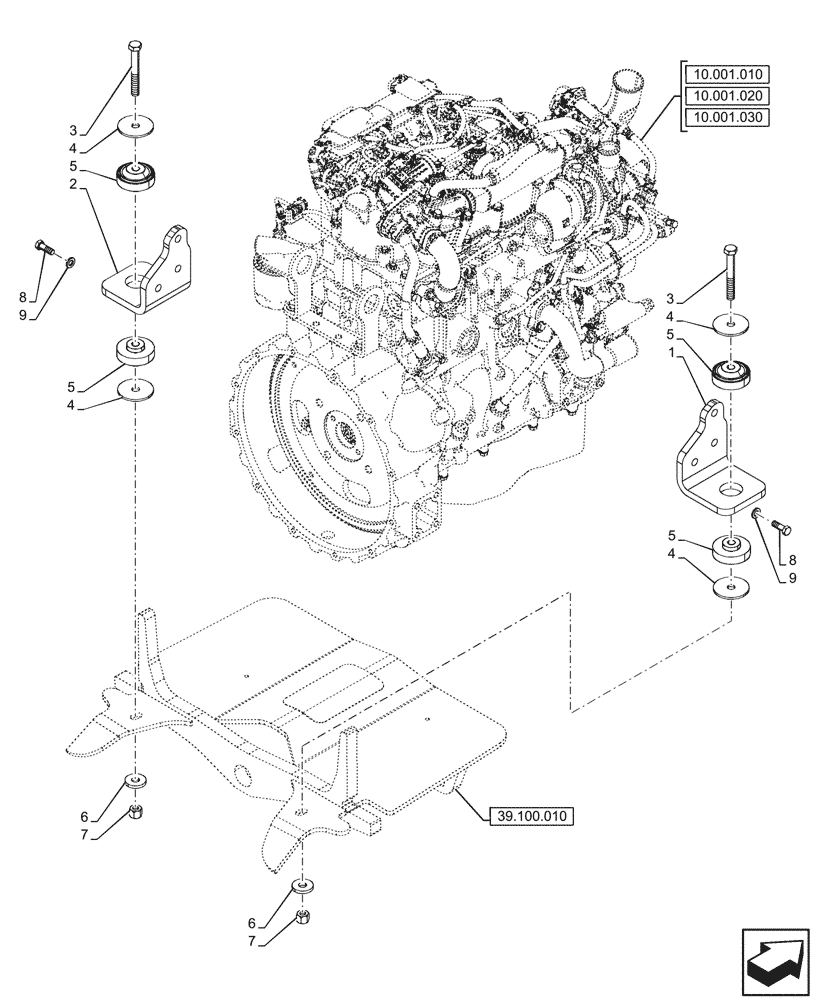

Запчасти Case 580N (10.001.050) - ENGINE, SUPPORT (10) - ENGINE

1

84604194

BRACKET

1шт.

2

84604190

BRACKET

1шт.

3

321246

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

2шт.

4

47395221

WASHER,0.66" ID x 3" OD x 0.18" Thk

4шт.

5

84383342

MOUNT

55 Durometer

4шт.

6

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

2шт.

7

832-10416

NUT,M16 x 2, Cl 8

2шт.

8

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

6шт.

9

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.
