(88.100.50[03]) - DIA KIT, CAB, AIR CONDITIONING, MECHANICAL

Запчасти Case 580N (88.100.50[03]) - DIA KIT, CAB, AIR CONDITIONING, MECHANICAL (88) - ACCESSORIES

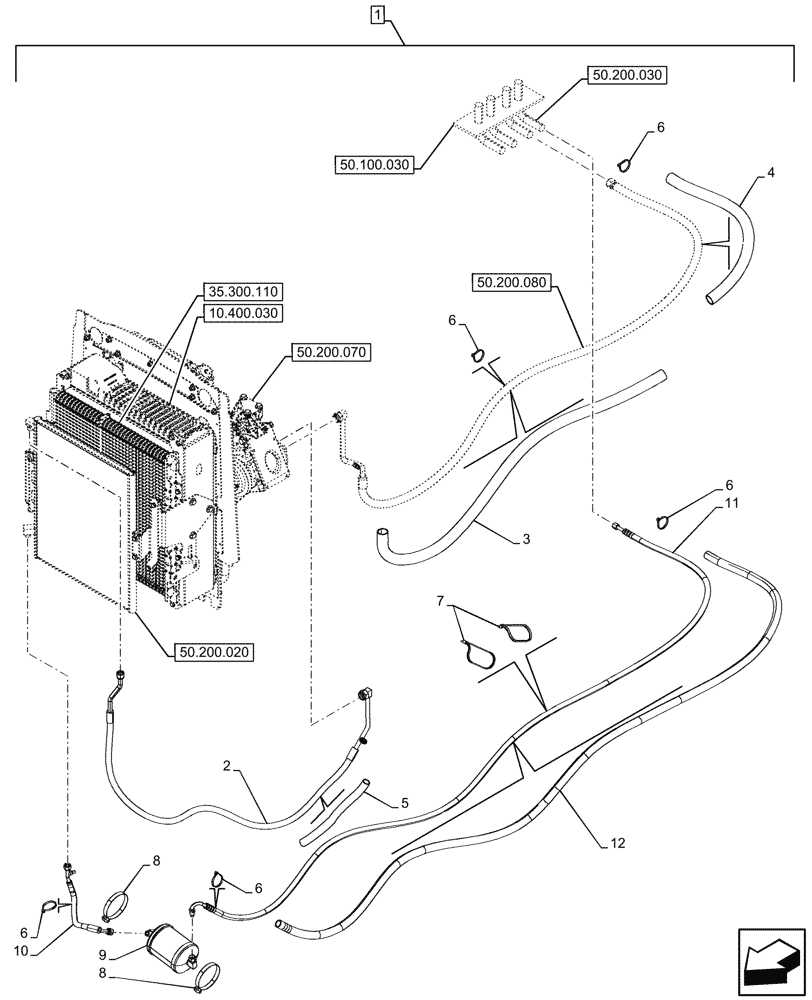

Схема запчастей Case 580N - (88.100.50[03]) - DIA KIT, CAB, AIR CONDITIONING, MECHANICAL (88) - ACCESSORIES
50.200.030
6
2
4
5
6
12
7
3
6
1
6
11
8
10
8
50.200.020
6
9
50.100.030
10.400.030
50.200.080
50.200.070
35.300.110
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47955689

CONSTRUCTION DIA

Air Conditioning Conversion, incl 2 - 12

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

84398074

A/C HOSE,1350mm L

Compressor to Condenser

1шт.

3

87726951

HOSE PROTECTION,26.3mm ID x 1200mm L

1шт.

4

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

3шт.

5

191703A1

HOSE PROTECTION,28mm ID x 34mm OD x 400mm L

2шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

5шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

8

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

9

86984155

RECEIVER-DRYER

1шт.

10

87630218

A/C HOSE,340mm L

Condenser to Dryer

1шт.

11

87630219

A/C HOSE,8mm ID x 2930mm L

Dryer to Cab

1шт.

12

87726950

HOSE PROTECTION

1шт.
