Запчасти Case 580N (88.100.50[02]) - DIA KIT, CAB, AIR CONDITIONING, MECHANICAL (88) - ACCESSORIES

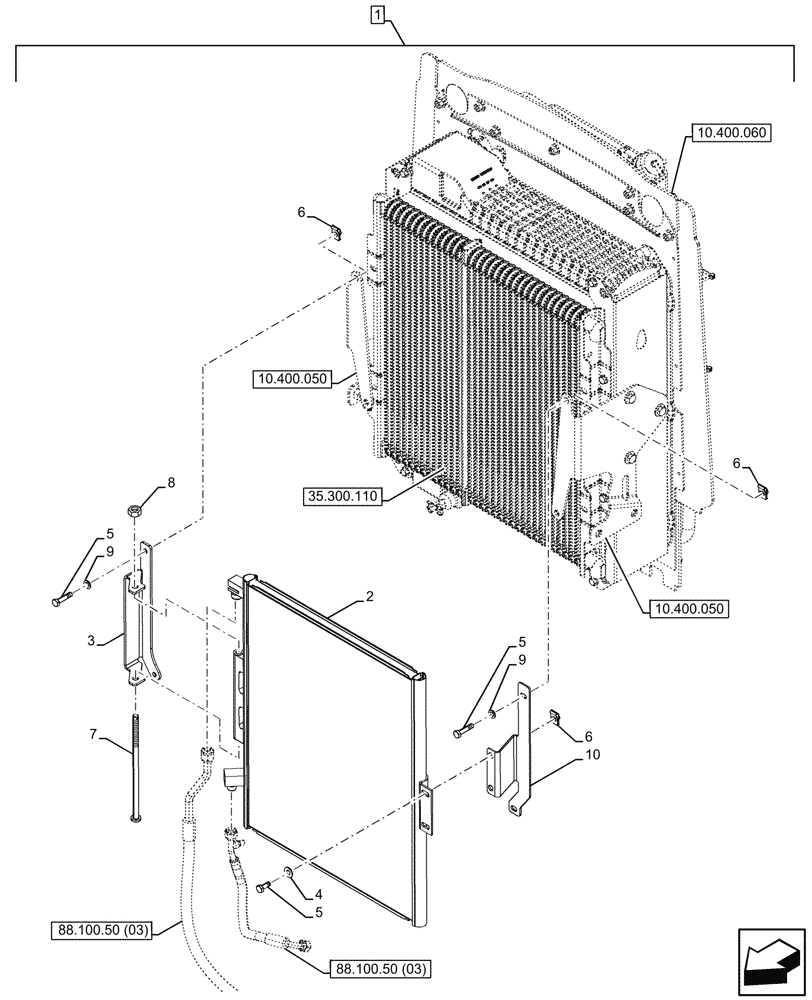

Схема запчастей Case 580N - (88.100.50[02]) - DIA KIT, CAB, AIR CONDITIONING, MECHANICAL (88) - ACCESSORIES
10.400.060
8
10
5
6
7
4
3
9
6
2
5
9
5
6
1
88.100.50 (03)
88.100.50 (03)
10.400.050
10.400.050
35.300.110
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47955689

CONSTRUCTION DIA

Air Conditioning Conversion, Incl 2 - 10

1шт.

Refer to Installation Instructions P/N for Correct Assembly Procedure

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

87546291

CONDENSER

Air Conditioning

1шт.

3

87598501

BRACKET, PIVOT

Condenser Support, RH

1шт.

4

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

6

833-40408

NUT,M8, U

2шт.

7

814-10220

BOLT,Hex, M10 x 1.5 x 220mm, Cl 8.8

1шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

9

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

10

87589025

BRACKET, SUPPORTING

Condenser Support, LH

1шт.
