(88.100.35[23]) - DIA KIT, BI-AUXILIARY BACKHOE VALVE SECTION, PILOT CONTROL, COMPONENTS

Запчасти Case 580N (88.100.35[23]) - DIA KIT, BI-AUXILIARY BACKHOE VALVE SECTION, PILOT CONTROL, COMPONENTS (88) - ACCESSORIES

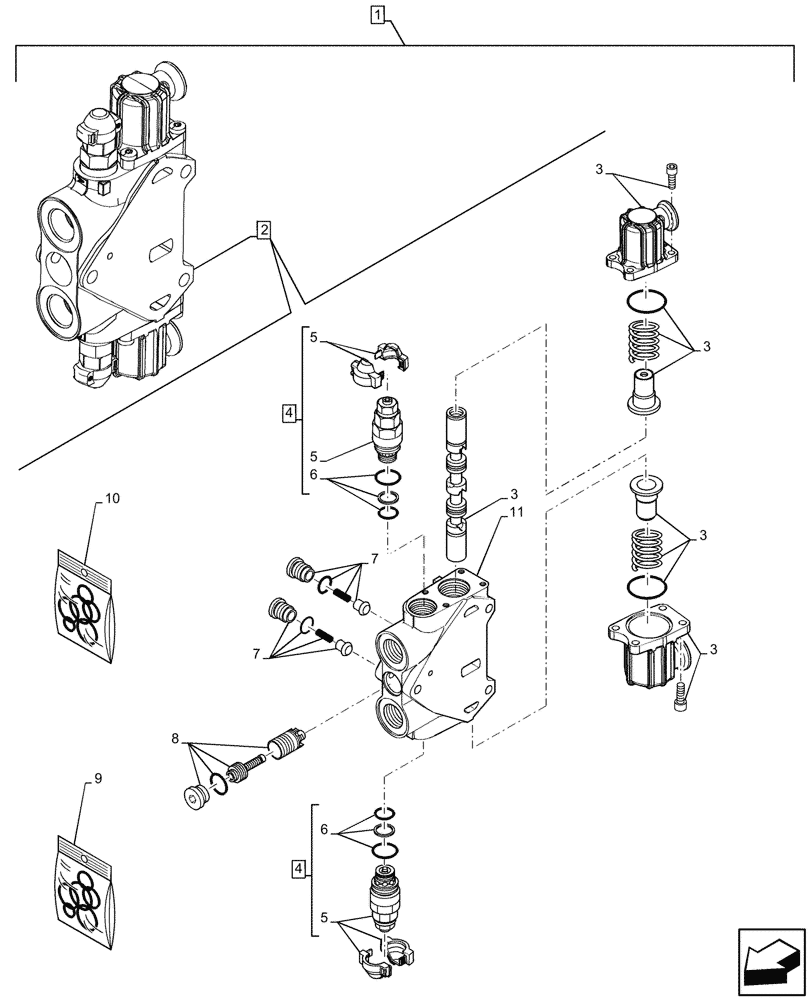

Схема запчастей Case 580N - (88.100.35[23]) - DIA KIT, BI-AUXILIARY BACKHOE VALVE SECTION, PILOT CONTROL, COMPONENTS (88) - ACCESSORIES
6
3
3
7
4
3
11
9
10
3
2
5
7
4
8
1
3
5
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84376312

CONSTRUCTION DIA

Bi Auxiliary Backhoe Valve Section, Pilot Control, Incl 2 - 11

1шт.

2

84278691

HYD VALVE SECTION

ASSY, Bi-Dir, Pilot Control, Incl 3 - 11

1шт.

3

85826344

KIT,Operation

Operation

1шт.

4

85812115

VALVE PRESSURE RELIE

ASSY, Maximum 220bar, Incl 5, 6

2шт.

5

NSS

NOT SOLD SEPARAT

Valve, Incl in 4

2шт.

6

85811933

SEAL KIT,Secondary Valve

Secondary Valve

2шт.

7

85811938

KIT,Check Valve

Check Valve

2шт.

8

85819378

KIT

Compensator

1шт.

9

85824281

SEAL KIT,Control Valve Section, Complete

Control Valve Section

1шт.

10

85819148

SEAL KIT,Between Control Valve Sections

Between Control Valve Sections

1шт.

11

NSS

NOT SOLD SEPARAT

Valve, Incl in 2

1шт.
