(88.100.35[13]) - DIA KIT, DUAL AUXILIARY, PILOT CONTROL, EXTENDABLE DIPPER, VALVE, COMPONENTS

Запчасти Case 580N (88.100.35[13]) - DIA KIT, DUAL AUXILIARY, PILOT CONTROL, EXTENDABLE DIPPER, VALVE, COMPONENTS (88) - ACCESSORIES

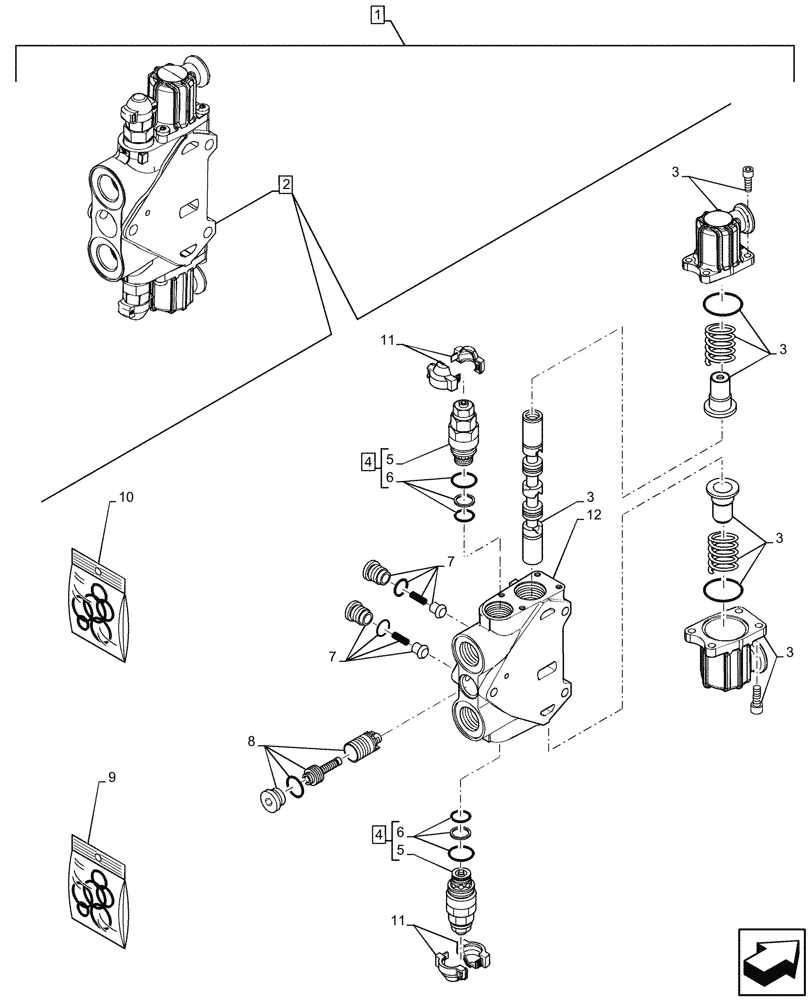

Схема запчастей Case 580N - (88.100.35[13]) - DIA KIT, DUAL AUXILIARY, PILOT CONTROL, EXTENDABLE DIPPER, VALVE, COMPONENTS (88) - ACCESSORIES
2
10
3
3
12
6
5
8
9
11
7
11
4
3
6
1
7
3
3
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47670543

SERVICE KIT

Dual Auxiliary, Pilot Control, Extendable Dipper, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

84278691

HYD VALVE SECTION

ASSY, BI_DIR Pilot Control, Incl 3 - 12

1шт.

3

85826344

KIT,Operation

Operation Kit

1шт.

4

85812115

VALVE PRESSURE RELIE

ASSY, Maximum 220 bar, Incl 5

2шт.

5

NSS

NOT SOLD SEPARAT

Valve, Incl in 2

1шт.

6

85811933

SEAL KIT,Secondary Valve

Secondary Valve

2шт.

7

85811938

KIT,Check Valve

2шт.

8

85819378

KIT

Compensator

1шт.

9

85824281

SEAL KIT,Control Valve Section, Complete

Swing & Outlet Sections

1шт.

10

85819148

SEAL KIT,Between Control Valve Sections

Between Control Valve Sections

1шт.

11

NSS

NOT SOLD SEPARAT

Protection Valve, Incl in 2

1шт.

12

NSS

NOT SOLD SEPARAT

Valve, Incl in 2

1шт.
